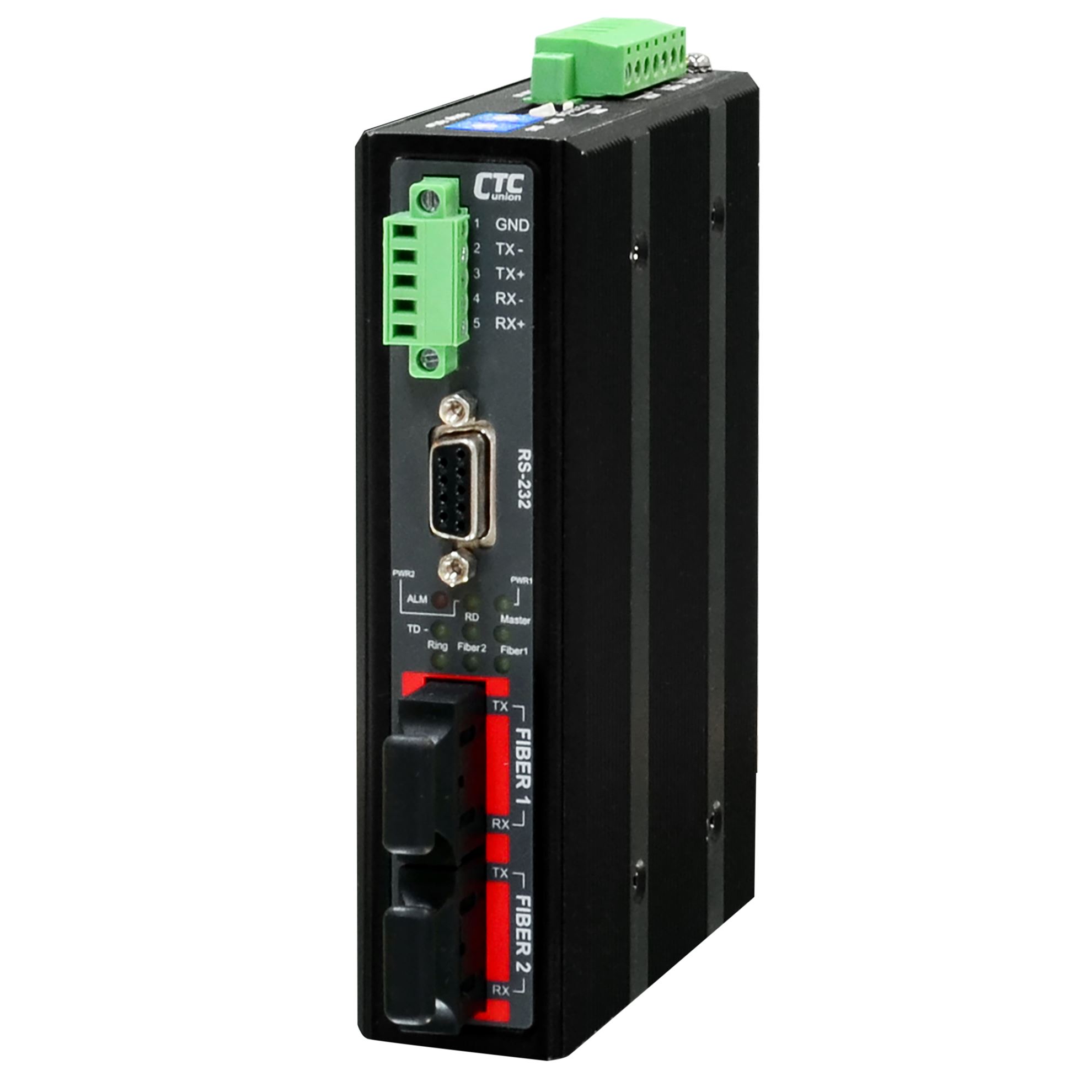

CTC UNION Serial To Fibre Daisy

Model: IFC-FDC-SC002

CTC UNION Serial To Fibre Daisy Chain Media Converter.Serial RS485/ 422/232 to SC/ST fiber 2KM,TX1310nm /RX1550nm. -10 to 60 C. Power consumption 12V/11W. Dinmount kit included.

IFC Series converters are capable of selecting interface modes for connection to RS-232 (3 wire), RS-485 (2 wire, half duplex) or RS-422/485 (4 wire, full duplex) and feature a three-way communication plus a second independent RS-232 communication channel. Additionally, the terminal block offers an alarm relay contact and two redundant DC power inputs. IFC Series converters are also available in two operating temperature ranges, a standard -10°C to 60°C commercial temperature range and an extended -40° to 75°C range. With all these specifically designed features, IFC Series are reliable and ideal solutions for keeping your industrial automation applications running smoothly and continuously even in harsh environments.

Features

  • Supports 2 fibre link (IFC-FDC)
  • Supports dual channel communication, including Triple-Way communication, and Two-Way communication
  • Extend serial transmission distance up to 2km
  • Supports several topologies , cable redundancy, ring redundancy, daisy chain, point to point (IFC-FDC)
  • Redundant dual power inputs (12/24/48VDC)
  • Supports RS-232, RS-422, RS-485 (2/4 wire) transmission to dual fibre connections
  • Enhanced serial baud rate up to 1024kpbs
  • 2.5KV isolation for serial signal
  • Supports relay output for power or link failure warning
  • Hardened housing with IP30 protection
  • Fanless and DIN-Rail design for harsh industrial environment
  • Adjustable pull high/low resistor and terminator for RS-422/485 transmission
  • 5 Year Warranty
