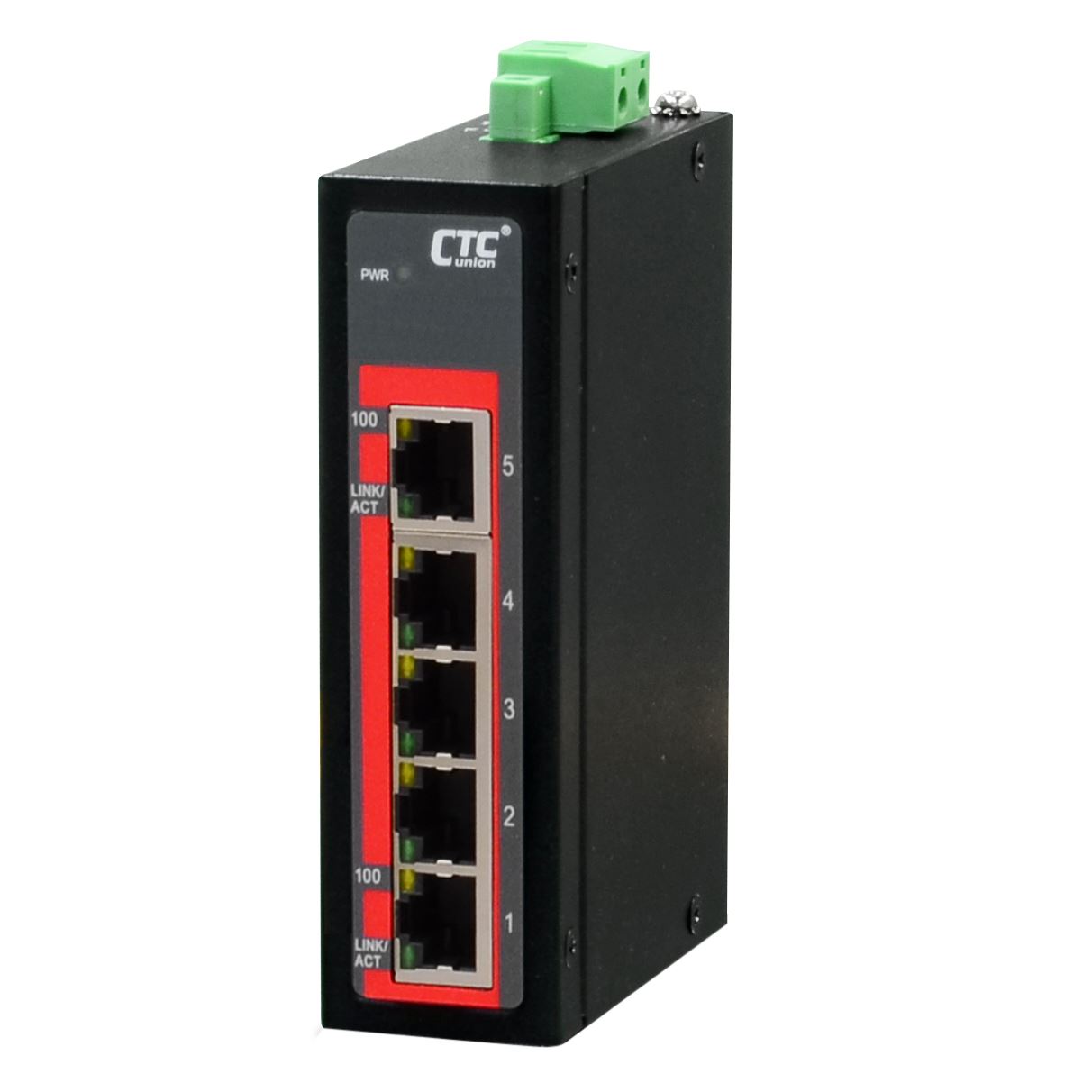

CTC UNION 5 Port Fast Ethernet Unmanaged Switch.-10C~60C.

Model: IFS-500C

CTC UNION 5 Port Fast Ethernet Unmanaged Switch.-10C~60C. 5x 10/100BaseT(X). Compact size. Power consumption V DC/W: 12/0.9, 24/1.2 & 48/2. Dinmount kit included.

This model is a compact sized, non-managed industrial grade Fast Ethernet switch with 5x 10/100Base-TX ports that provide stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, these switches are designed for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many militaries and utility market applications where environmental conditions exceed commercial product specifications. Standard operating temperature range models (-10°C~60°C) and wide operating temperature range models (-40°C~75°C) fulfil the special needs of industrial automation applications.



FEATURES:

  • Wide range input power 12/24/48V DC (9.6V~60V DC), or AC 24V (18V~36V AC)
  • IP30 rugged metal housing and Fanless
  • Compact size for easy installation
  • Wide operating temperature -40°C~75°C (for E model only)
  • Provides broadcast storm protection
  • Very low power consumption
  • Supports flow control
  • CE, FCC, and EN50121-4 for railway traffic certification
  • Industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
  • Industrial power supply purchased separately - MDR-40-24
  • 5 Year Warranty
