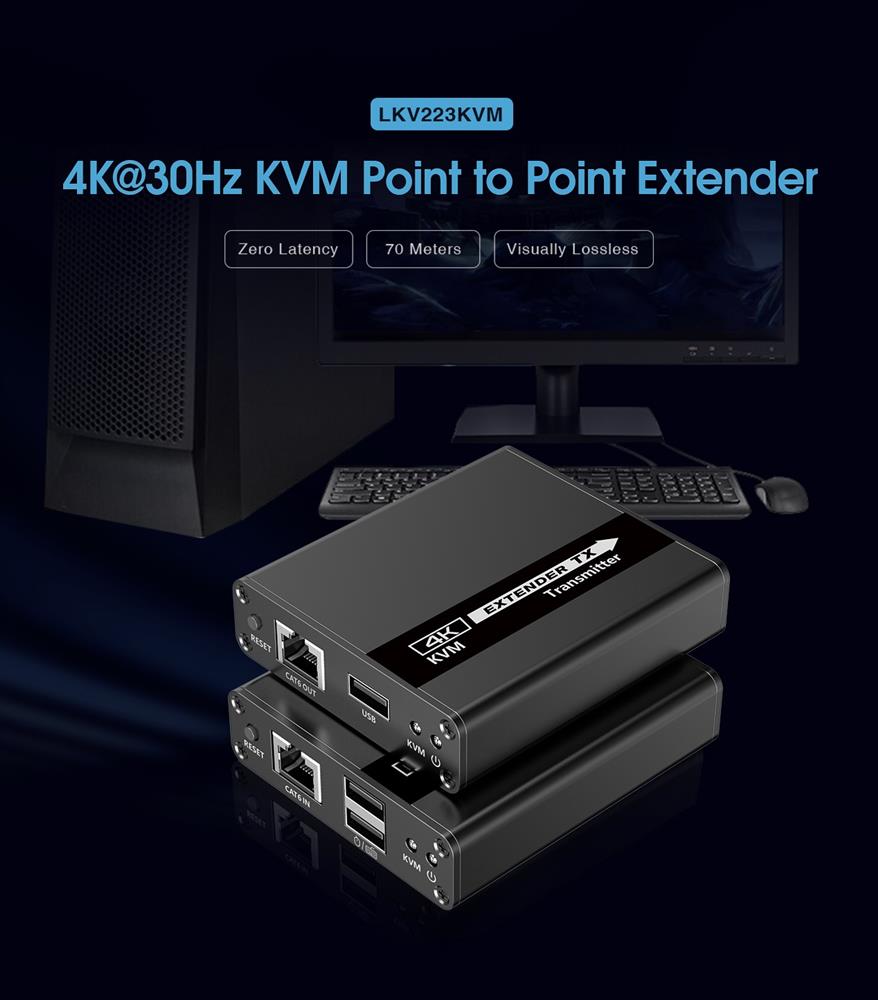

LENKENG 1080P HDMI Extender with KVM Support Over Single Cat6/6A

Model: LKV223KVM

LENKENG 1080P HDMI Extender with KVM Support Over Single Cat6/6A Cable. Supports Mouse & Keyboard Extension via USB. Up to 70m.

HDMI Extender includes a transmitter unit and a receiver unit, allowing the HDMI signal to be transmitted up to 70m at 1080p resolution using a CAT6/6A/7 network cable. It adopts a point-to-point connection configuration. Supports KVM remote control and 3.5 mm stereo audio output.

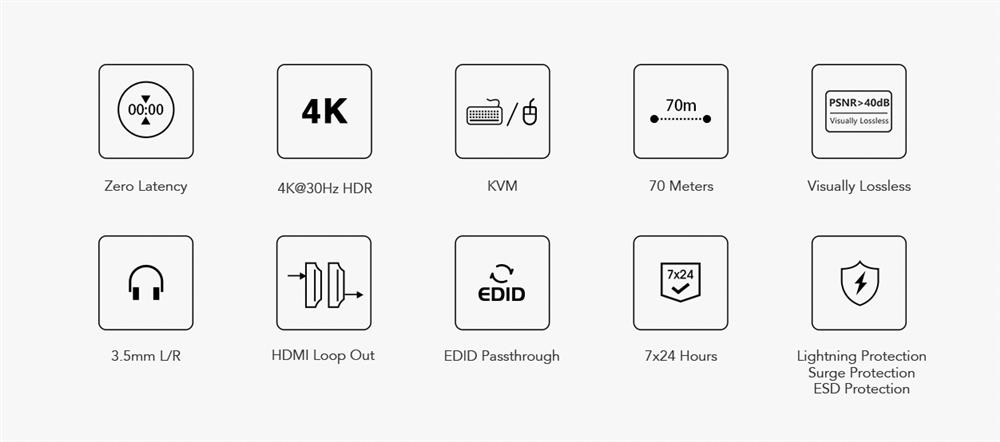

Features:

  • Zero latency
  • Supports up to 4K@30Hz resolution
  • Supports CAT6/6A/7 network cables, 1080p@60Hz transmission distance is up to 70 meters, 4K@30Hz transmission distance is up to 40 meters
  • Supports KVM remote control and management
  • Supports HDR10
  • Supports EDID passthrough
  • Transmitter supports HDMI loop-out
  • Receiver supports 3.5mm stereo audio output
  • Automatically adjusts parameters to match different network cables and achieve the best display performance
  • Lightning, Surge, and ESD Protection

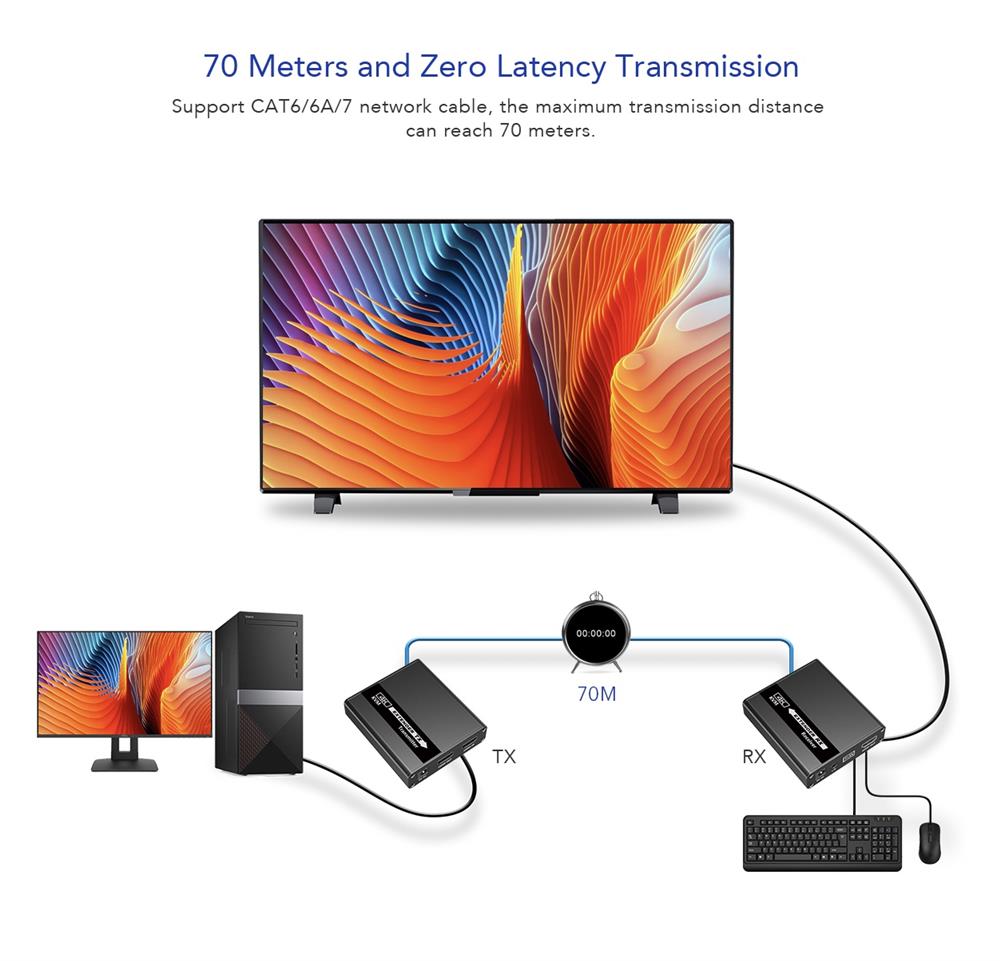

70M and zero latency transmission

Support CAT6/6A/7 network cable, the maximum transmission distance can reach 70m

4k@30Hz HDR for visually lossless transmission

Supports 4K@30Hz HDR, the image can be more clear, higher saturation and show more outstanding details.

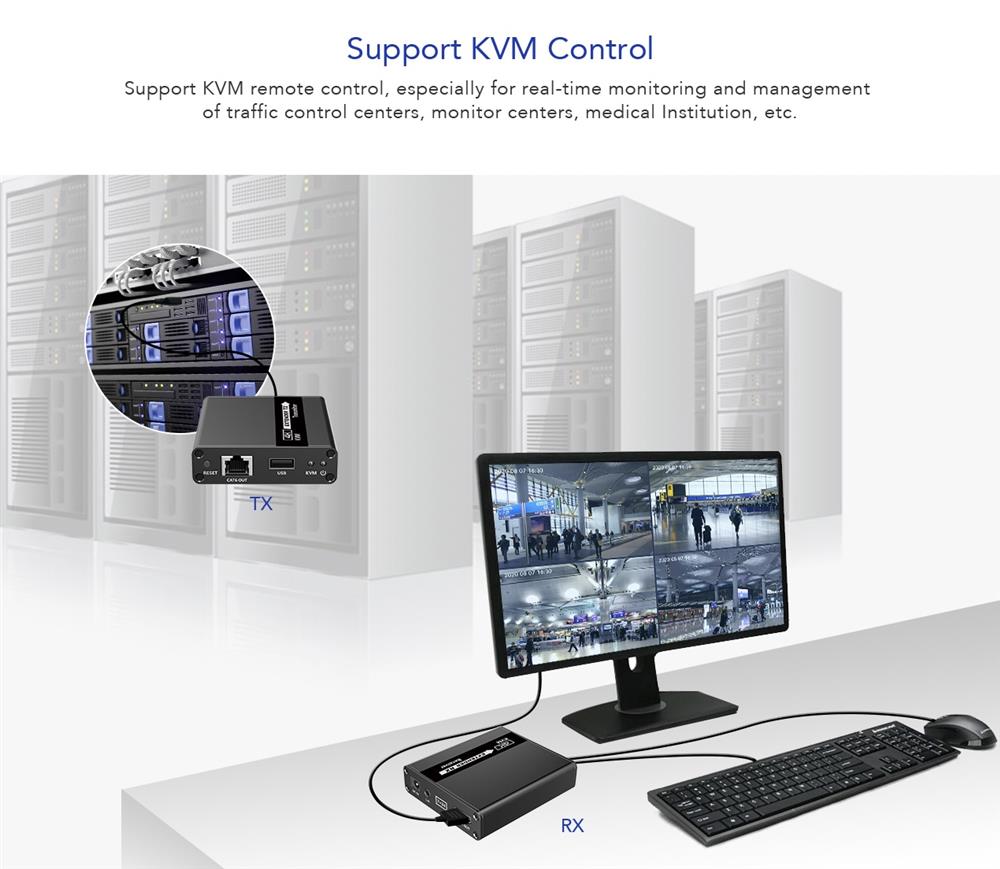

Support KVM control

Supports KVM remote control, especially for real-time monitoring and management fo traffic control centres, moniter centres, medical institutions, etc.

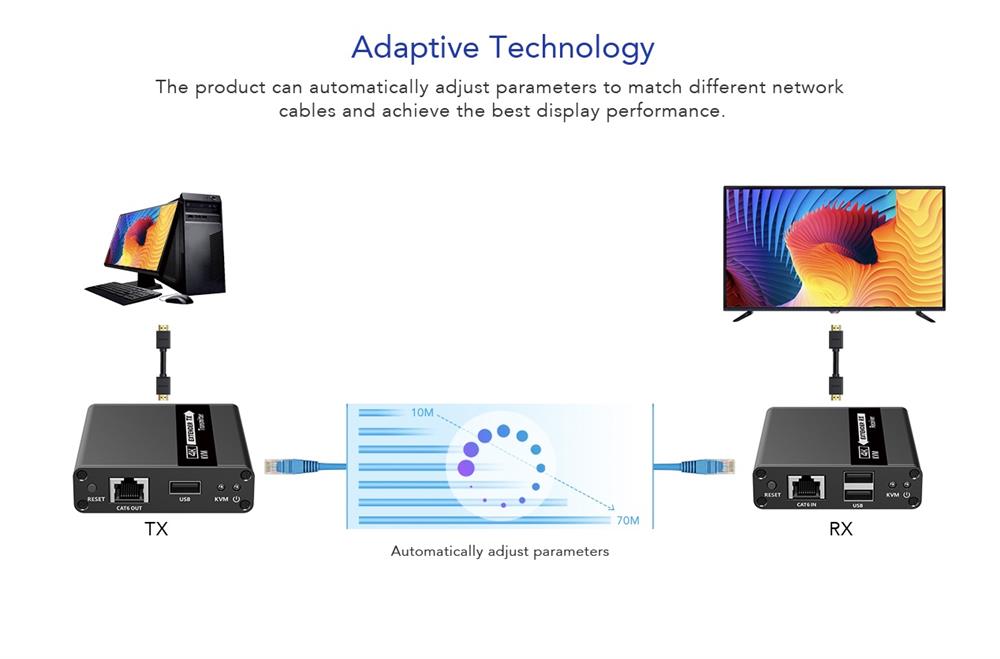

Adaptive technology

The product can automatically adjust parameters to match different network cables and achieve the best display performance

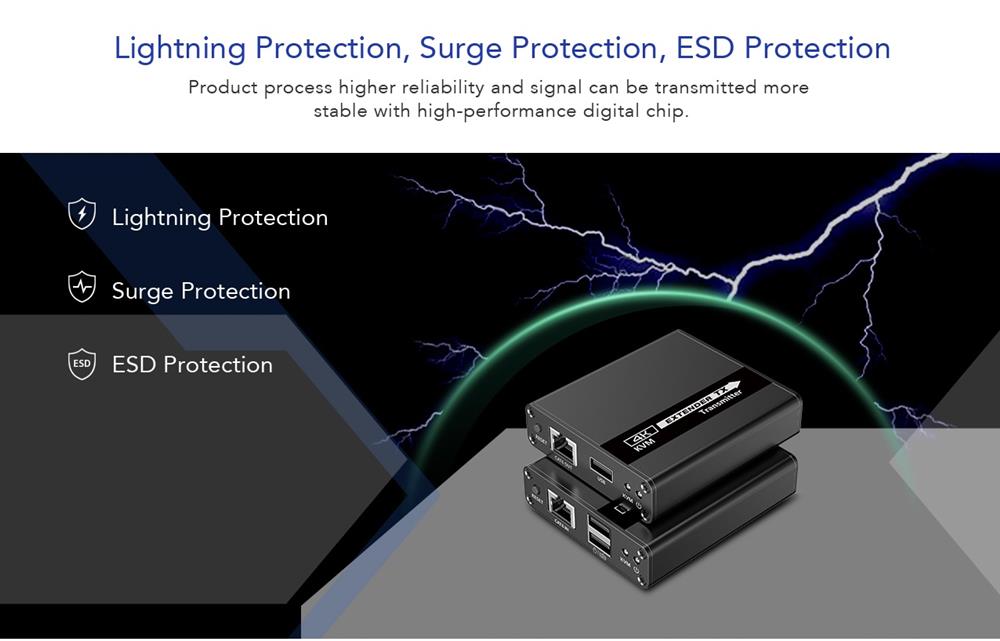

Lightning protect, surge protection, ESD protection

Product can process higher reliabilty and signal can be transmitted with more stability with high-performance digital chip.
