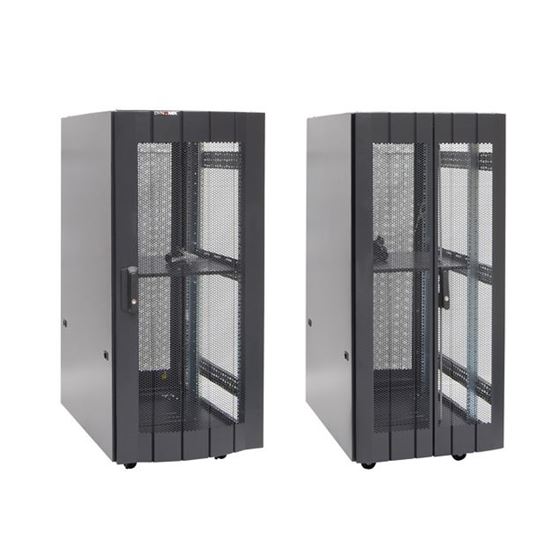

DYNAMIX 22RU Server Cabinet 900mm Deep (600x900x1281mm) FLAT PACK

Model: RST22-6X9FP

DYNAMIX 22RU Server Cabinet 900mm Deep (600x900x1281mm) FLAT PACK 1x shelf, 4x fans, 25 x cage nuts, 4x castors, 4x levelling feet Single front and bifold rear mesh doors. Black

Step up your networking game with the DYNAMIX Network Cabinet. Thoughtfully designed for modern requirements, it’s more than just a safe storage space for your equipment. Crafted from high-quality SPCC cold roll steel, ensuring durability & longevity. Boasting a gloss black powder-coated finish, this cabinet seamlessly complements any professional environment. Equipped with lockable doors for added security & removable side panels for easy maintenance.

Need to transport or store? No problem! Our cabinet also comes in a convenient flat-pack option for hassle-free mobility.

Whether you’re revamping your office space or setting up a new network station, the DYNAMIX Network Cabinet promises performance wrapped in elegance.



FEATURES

  • Supplied with fixed shelves, fans, cage nuts, castors & levelling feet

  • Static loading: 1500kg

  • Width: 600mm

  • Depth: 900mm, 1000mm, 1200mm

  • Removable one-piece side panels

  • Double pipe profile frame connected by “3T” system

  • Front door hinged on the right side

  • Front & rear doors are lockable

  • Front & rear doors can be opened to 130°

  • Vertical mounting profile can be adjusted in 25mm increments

  • Optional plinths available to bolt cabinet to floor

  • Optional side vertical cable tray available

  • Optional baying kit available for cabinet interconnection (RABST)

  • Mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm

  • Supplied complete or in fast assembly flat pack format (FP codes)

  • Gloss black colour & easy clean surface

  • Material: SPCC quality cold rolled steel

  • Finish: Degreasing, acid pickling, phosphoric cleaning, powder-coated

  • Complies with IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3047.2-92, IP20 rated

  • 2 Year Warranty on cabinet. Subject to use within the static loading specifications & operation within normal environmental conditions

  • 1 Year Warranty on fans
