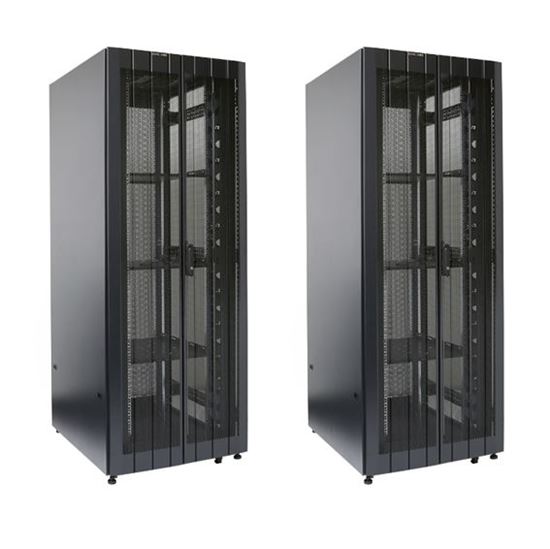

DYNAMIX 47RU Server Cabinet 1000mm Deep (800 x 1000 x 2250mm) FLAT

Model: RST47-8X10FP

DYNAMIX 47RU Server Cabinet 1000mm Deep (800 x 1000 x 2250mm) FLAT PACK 2x Front vertical management Panels. 3x Fixed Shelves, 4x Fans, , 4x Castors. Bifold front and rear mesh doors. Black


  • Supplied with fixed shelves, fans, cage nuts, castors and levelling feet
  • Static loading: 1500kg
  • Width: 600mm, 800mm
  • Depth: 900mm, 1000mm, 1200mm
  • Removable one piece side panels
  • Double pipe profi le frame connected by “3T” system
  • Front door hinged on right side
  • Front and rear doors are lockable
  • Front and rear doors can be opened to 130°
  • Vertical mounting profile can be adjusted in 25mm increments
  • Optional plinths available to bolt cabinet to floor
  • Optional side vertical cable tray available
  • Optional baying kit available for cabinet interconnection (RABST)
  • Mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm
  • Supplied complete or in Fast Assembly Flat Pack format (FP codes)
  • Gloss black colour and easy clean surface
  • Material: SPCC quality cold rolled steel
  • Finish: Degreasing, acid pickling, phosphoric cleaning, powder coated
  • Complies with IEC-60297, ANSI/EIA
  • RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3047.2-92, IP20 rated
  • 2 Year Warranty on cabinet. Subject to use within the static loading specifications and operation within normal environmental conditions
  • 1 Year Warranty on fans
