EDIMAX 8 Port 10/100/1000 Gigabit Desktop Switch. Full Duplex.

Model: SW5800GV3

EDIMAX 8 Port 10/100/1000 Gigabit Desktop Switch. Full Duplex. Perfect Solution for Home and Small Business. Auto Energy Saving Function. Plug and Play. Plastic Housing.

8-Port Gigabit Desktop Switch

SW5800GV3
  • Complies with IEEE802.3, IEEE802.3u and IEEE802.3ab standards
  • Supports auto MDI/MDI-X crossover detecting and auto correction
  • Supports full and half duplex for 10/100Mbps, and full duplex for 1000Mbps
  • Wire-speed packet filtering and forwarding rate
  • Store-and-forward architecture filters fragment & CRC error packets
  • Supports jumbo frames up to 9K bytes
  • Supports IEEE802.3az energy efficient Ethernet function
  • Supports optional power supply either through a USB port or the AC power supply. (*USB power cable included. Requires 1A current-USB adapter not included.)
  • 3 Year Warranty

Inactive Link Detection: When a network device is shut down and/or an inactive link is detected, the power usage adjustment feature automatically reduces power usage. The switch’s power consumption will be dynamically adjusted according to the link status and the number of active network devices.



Edimax 8-Port Gigabit Desktop Switch ES-3308P_V2_ES-5800G_V3-inactive_link_detection.png



Cable Length Detection: Devices equipped with this feature automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes.

Edimax 8-Port Gigabit Desktop Switch ES-3308P_V2_ES-5800G_V3-cable_length_detection.png

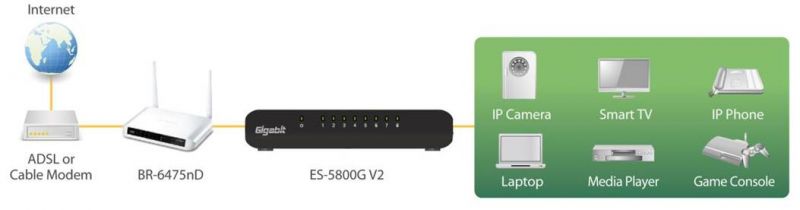

APPLICATION DIAGRAM

  • Connect the ES-5800G V3 to your router or cable/xDSL modem.
  • Connect a print server, NAS, smart TV, laptop, media player, game console and/or IP Camera to the ES-5800G V3.


Edimax 8-Port Gigabit Desktop Switch ES-5800G V3 application diagram
