Home > Audio Video Hardware > HDBaseT Solutions > CHDBT-1H3CL

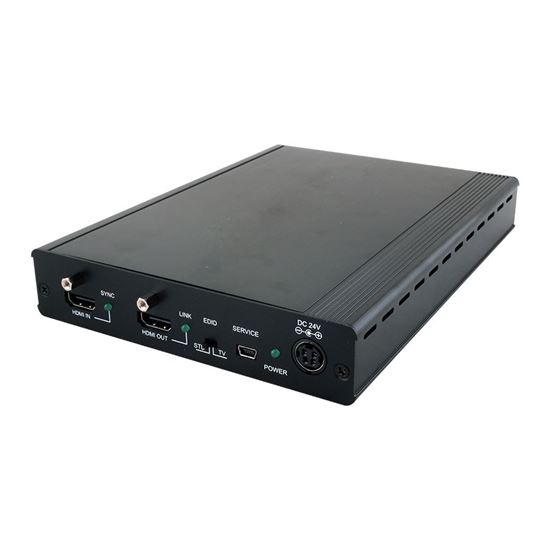

Picture of CYP HDBaseT Splitter 1x4. 1x HDMI Input, 1x HDMI Output, 3x
Picture of CYP HDBaseT Splitter 1x4. 1x HDMI Input, 1x HDMI Output, 3x Picture of CYP HDBaseT Splitter 1x4. 1x HDMI Input, 1x HDMI Output, 3x

CYP HDBaseT Splitter 1x4. 1x HDMI Input, 1x HDMI Output, 3x

Model: CHDBT-1H3CL

CYP HDBaseT Splitter 1x4. 1x HDMI Input, 1x HDMI Output, 3x HDBaseT up to 60m Outputs. 4K2K Resolution & 3D Support. 2-Way IR control.

CHDBT-1H3CL - HDBaseT-Lite 1x4 HDMI over CAT5e/6/6A Transmitter-Splitter

Features:
  • HDMI with 3D & 4K2K supported, HDCP and DVI compliant
  • The HDMI and CAT5e/6/6A outputs are playing the same source simultaneously
  • Supports data rate from 250Mbps up to 3Gbps
  • Supports a wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4K2K (3840x2160@30Hz & 4096x2160@24Hz)
  • Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192kHz sample rate)
  • Supports distances up to 60 meters through CAT5e/6/6A cables
  • Can select Standard or TV EDID
  • Supports USB service port
  • Supports Bi-directional IR control
  • The 3D signal display follows by display/TV's EDID
  • Recommended receiver: CH-506RXL
