HIKMICRO Eco-V Handheld Thermal Imaging Camera. 2.4”LCD Screen.

Model: ECO-V

HIKMICRO Eco-V Handheld Thermal Imaging Camera. 2.4”LCD Screen. Thermal, Visual & Fusion Image Modes. Thermal Resolution: 9,216 Pixels. NETD: Less than 50 mK.

The handheld thermal camera is based on thermal technology, specially designed for the needs of temperature-measuring applications. People can quickly troubleshoot faults on-site.

Features:

Thermal resolution: 96 × 96 (9,216 pixels)
112:1 Distance to spot ratio (D:S)
SuperIR: 240 × 240 (57,600 pixels)
NETD: < 50 mK (@ 25°C, F# = 1.0)
Measurement presets: center spot, hot spot, cold spot, off
25 Hz image frequency
Laser pointer
Built-in 4 GB flash memory: 30,000 pictures
Up to 8 hours continuous running
Thermal/Visual/Fusion

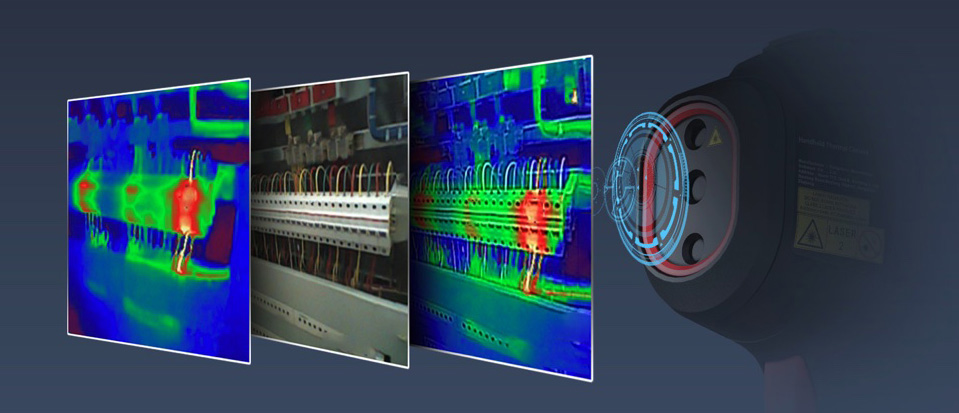

Dual-camera Thermal Imager

Built-in IR camera and visible camera, allow you to switch 3 image modes (Thermal, Visual, and Fusion). "Fusion" blends key details from a 0.3M Pixels visual camera to the IR image, adding extra detail and clarity.

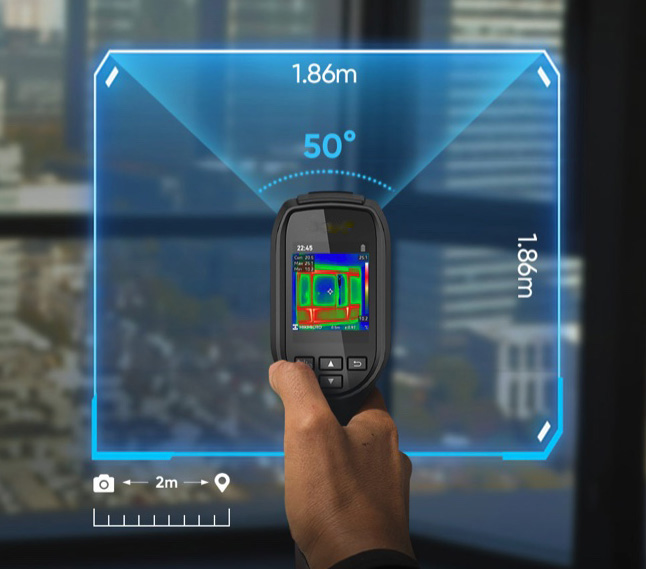

50° Wide Angle Lens

Scan large areas quickly with the 50° wide-angle lens to find issues like air infiltration, water leaks, and insulation issues.

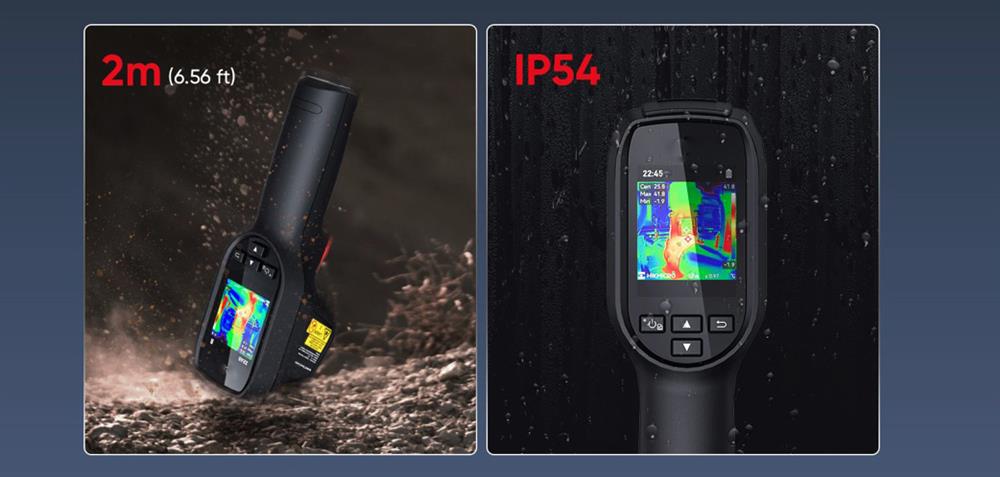

Rugged and Durable

Features IP54-rated form factor, passes strict drop tests up to 2 meters (6.56 feet) and comes with a three-year warranty.

HIKMICRO Eco-V Handheld Thermal Imaging Camera. 2.4”LCD Screen.
