FLUKE NETWORKS LinkIQ 1GB Fiber Media Kit. Includes 1GB Fiber Media

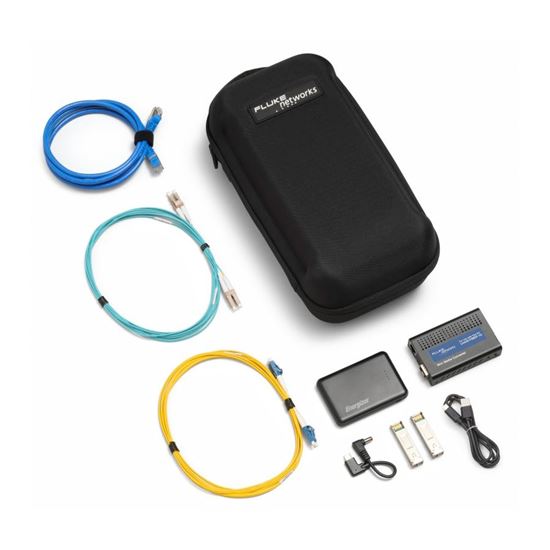

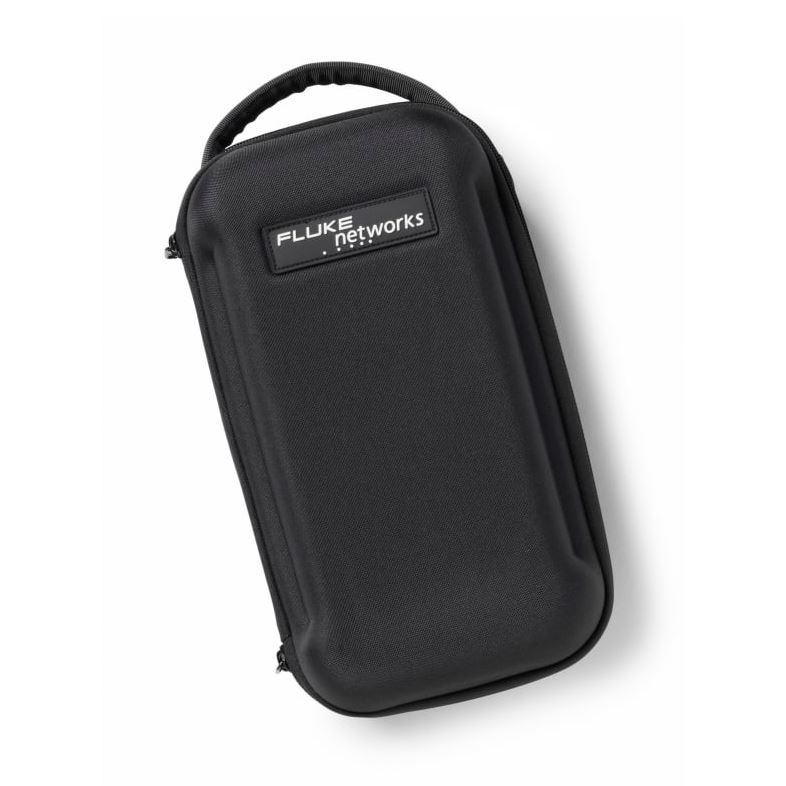

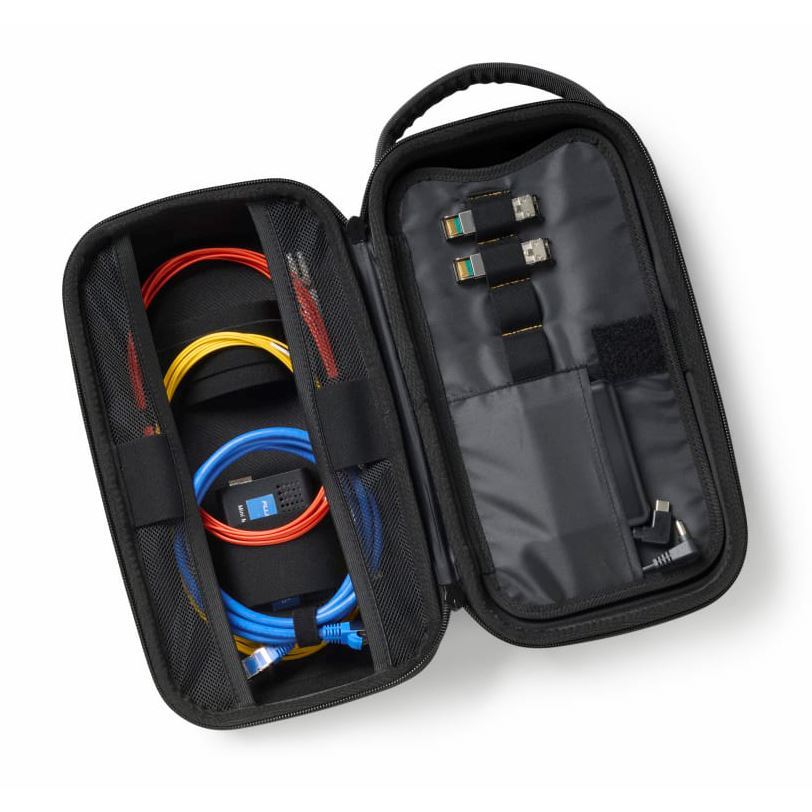

FLUKE NETWORKS LinkIQ 1GB Fiber Media Kit. Includes 1GB Fiber Media Converter, SFPs (1000BASE-LX, 1000BASE-SX) SM and MM Fiber Cords, RJ-45 Cable, Power Bank and Case.

Use the Fluke Networks Fibre Media Converter (FMC) Kit to understand and debug the fibre port connections by determining application, switch name, port name and VLAN and verifying connectivity using IP ping. The FMC includes the Media Converters, SFPs, fibre optic cords and RJ45 cable to connect with any LinkIQ tester to troubleshoot network connectivity.

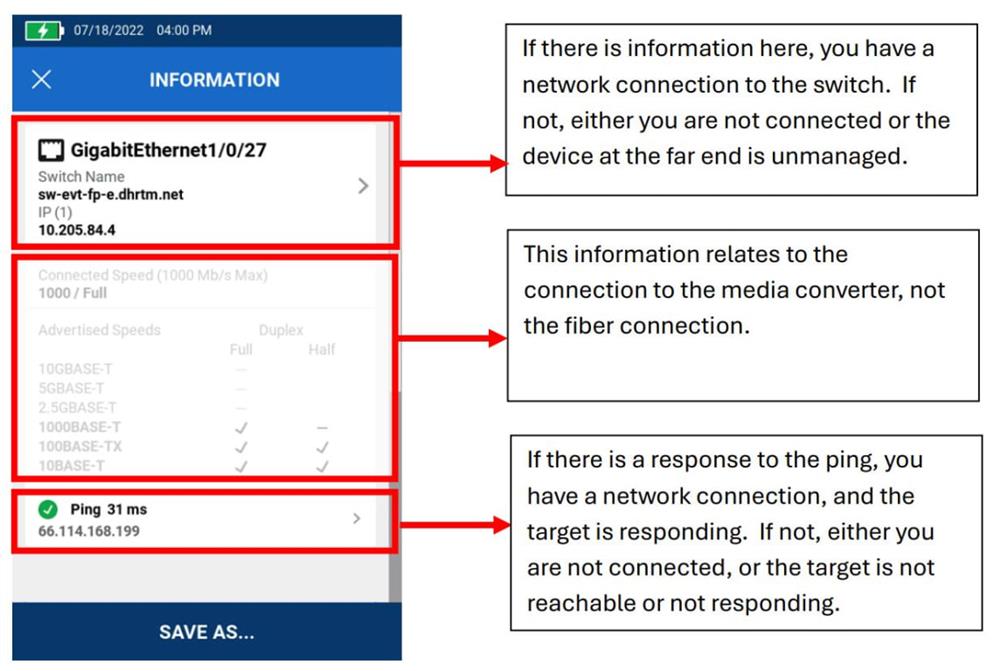

When testing a connection through the FMC, the “Network” test provides results that can tell you if you have an Ethernet connection to the device at the far end (typically a switch) and if you can send IP traffic to targets at the far end. The result you get looks something like the screen below, and here is what it can tell you.

FEATURES:

• Test fibre optic network ports with any LinkIQ tester (sold separately)
• Compatible with LinkIQ Cable+Network Tester and LinkIQ Duo Cable+Wi-Fi+Network Tester
• Fibre optic network testing features include: IPv4 and IPv6 ping, nearest switch diagnostics (IP address, name, port / VLAN number)
• Battery bank for portable operation
• Connects to fibre Ethernet ports through a media converter and SFP using single-mode or multimode optic fibre cables
