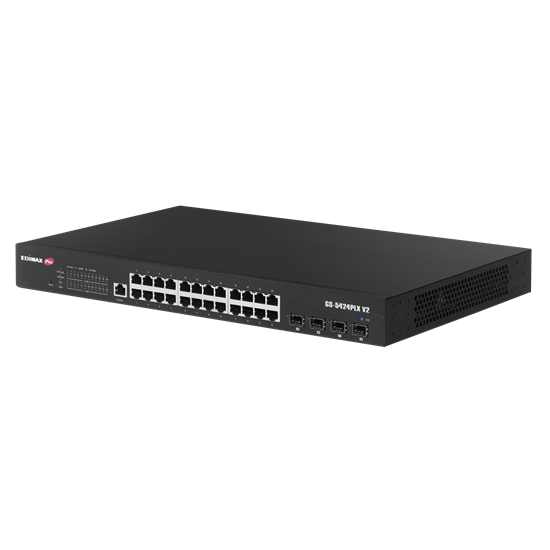

EDIMAX 24 Port Gigabit PoE+ Web Smart Surveillance Switch with 4

EDIMAX 24 Port Gigabit PoE+ Web Smart Surveillance Switch with 4 Port 10GbE SFP+ Uplinks. Supports up to 30W Per PoE Port (Total Power Budget: 400W) Long Range up to 200m at 10Mbps.

Features:

• • 24 Gigabit Ethernet PoE+ ports and 4 10GbE SFP+ ports
• One-click to create Surveillance VLAN and auto-discover, auto-enrolled Surveillance compliant devices at once
• Dedicated Intelligent Thermal Controller to control fan speeds for power saving and noise reduction
• PoE-powered devices (PD) alive check to enhance the reliability of the network
• Dual-firmware image for robust failover mechanisms
• Guaranteed PoE long distance to 200 meters
• Power backfeed protection to avoid damaging the PoE ports
• IP Surveillance VLAN and Voice VLAN to enhance video and voice quality
• DHCP snooping to protect the integrity of the legitimate DHCP server and its operations
• IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 400W) for powering PoE-enabled devices
• Supports SNMP v1/v2c/v3, Access Control List
  (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping and etc.
• Supports 128Gbps backplane bandwidth, 95.2Mpps forwarding rate, 16K MAC address table and 12KB jumbo frame

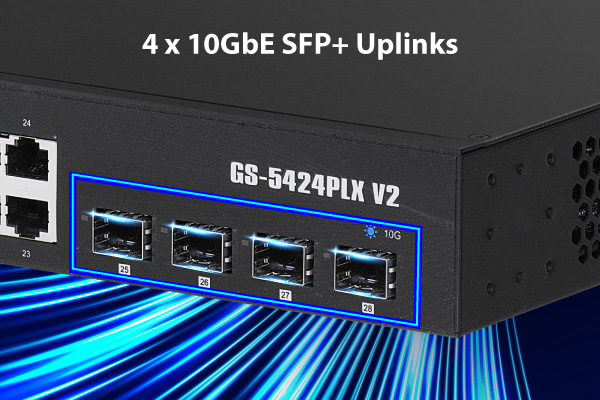

No More Uplink Bottleneck

Equipped with 4 10GbE SFP+ ports for up to 40Gbps speed and long-range fibre-optic uplinking capability, the switch removes the network bottleneck and gets all the connectivity you need to your devices without congestion.

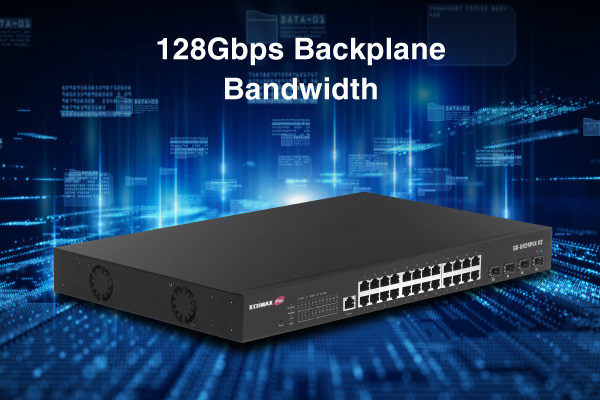

Strong Data Switching Capability

With 128Gbps backplane bandwidth, the switch has a strong switching capability for sending data to the destination devices at ultra-high speed. It supports a forwarding rate of 95.2Mpps (64-byte package size), utilizing the maximum available bandwidth without delay.

Power Saving Implementation

With a dedicated and intelligent microchip for thermal detection and system cooling control, the switch can measure the environmental temperature and control fan speeds, as well as turn on/off each fan for power saving and noise reduction.

Cost-effective PoE Solution

Offering high-speed network connection with the power supply to Powered Devices (PDs) for cost saving of power line deployment, the switch PoE Powered Device (PD) alive check monitors the real-time status of connected PDs and enables reboot to fail PDs, further enhancing network reliability.
