EDIMAX 54-Port Gigabit PoE+ Long Range Web Smart Switch.

EDIMAX 54-Port Gigabit PoE+ Long Range Web Smart Switch. 48 Gigabit Ethernet PoE+ Ports and 6 10GbE SFP+ Ports. PoE up to 200m at 10Mps. Supports up to 30W per Port.

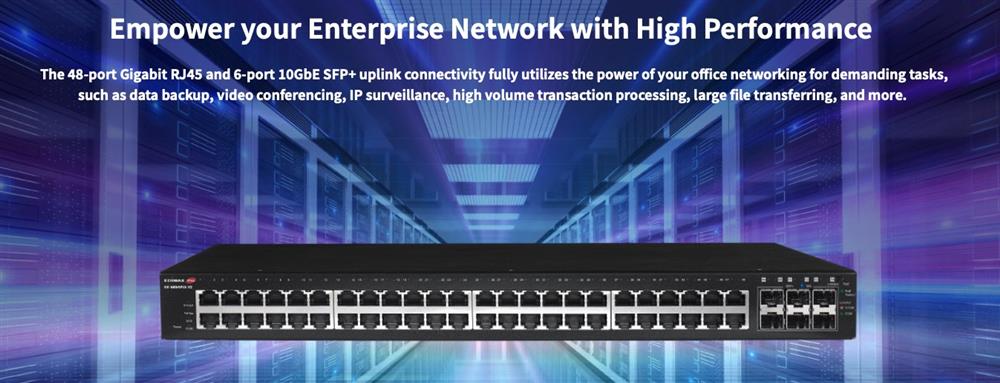

The EDIMAX Pro GS-5654PLX V2 is a high-performance web-smart switch designed for enterprise & SMB networks. With 48 Gigabit PoE+ ports & 6 10-Gigabit SFP+ ports, it provides up to 60Gbps of fibre-optic uplinking capacity & fast & reliable connectivity for demanding tasks such as data backup, video conferencing, IP surveillance, & more. This switch also features a long-range mode, allowing for power & data transmission up to 200m at a guaranteed speed of 10Mbps, making it ideal for applications such as IP cameras & network devices in remote locations. The GS-5654PLX V2 is equipped with a range of smart layer 2 management features, including SNMP
v1/v2c/v3, Dual Firmware, Access Control List (ACL), DHCP Snooping, QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunking, IGMP v1/v2/v3 Snooping, & Port Mirroring, to provide a secure, scalable, & reliable switch solution for your network.

Features:

• 48 Gigabit Ethernet PoE+ ports & 6 10GbE SFP+ ports
• Dedicated Intelligent Thermal Controller to control fan speeds for power saving & noise reduction
• PoE-powered devices (PD) live check to enhance the reliability of the network
• Dual-firmware image for robust failover mechanisms
• Guaranteed PoE long distance to 200m
• Power back feed protection to avoid damaging the PoE ports
• IP Surveillance VLAN & Voice VLAN to enhance video & voice quality
• DHCP snooping to protect the integrity of the legitimate DHCP server & its operations
• IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 400W) for powering PoE-enabled devices
• Supports SNMP v1/v2c/v3, Access Control List (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping & etc.
• Supports 216Gbps backplane bandwidth, 160.7Mpps forwarding rate, 32K MAC address table & 12KB jumbo frame

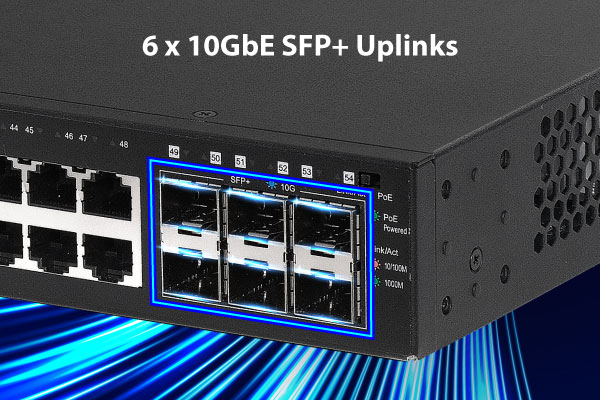

No More Uplink Bottleneck

Equipped with 6 10GbE SFP+ ports for up to 60Gbps speed and long-range fibre-optic uplinking capability, the switch removes the network bottleneck and gets all the connectivity you need to your devices without congestion.

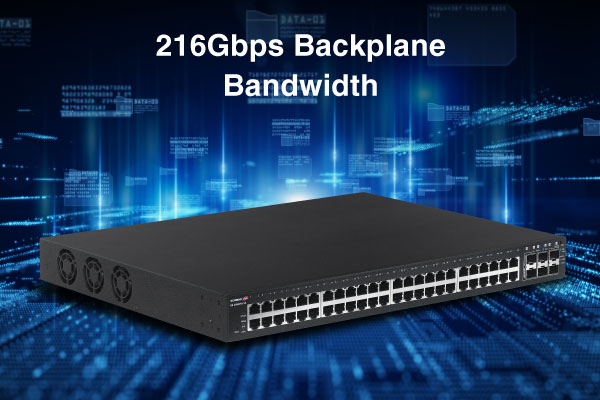

Strong Data Switching Capability

With 216Gbps backplane bandwidth, the switch has a strong switching capability for sending data to the destination devices at ultra-high speed. It supports a forwarding rate of 160.7Mpps (64-byte package size), utilizing the maximum available bandwidth without delay.

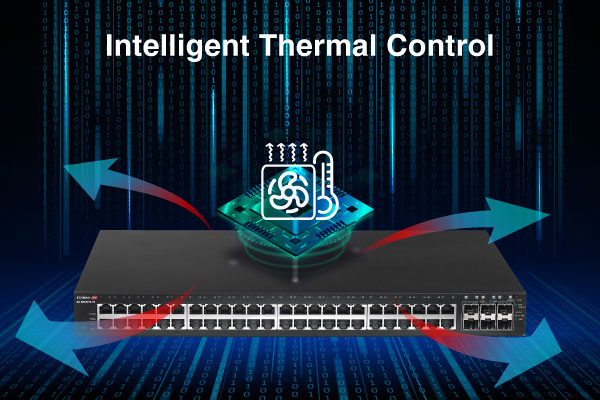

Power Saving Implementation

With a dedicated and intelligent microchip for thermal detection and system cooling control, the switch can measure the environmental temperature and control fan speeds, as well as turn on/off each fan for power saving and noise reduction.

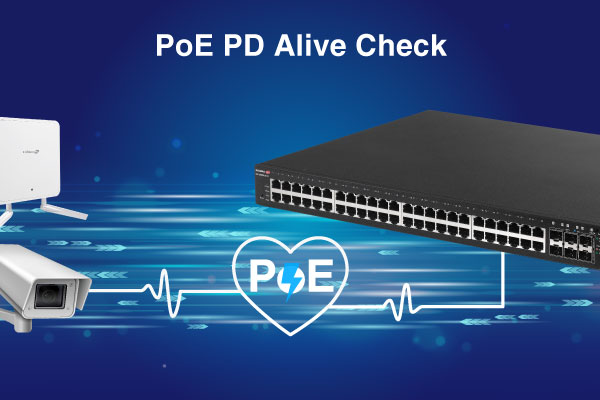

Cost-effective PoE Solution

Offering high-speed network connection with the power supply to Powered Devices (PDs) for cost saving of power line deployment, the switch PoE Powered Device (PD) alive check monitors the real-time status of connected PDs and enables reboot to fail PDs, further enhancing network reliability.
