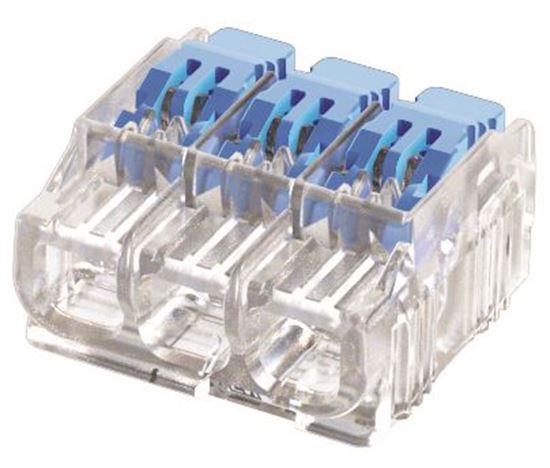

IDEAL INDUSTRIES 32A 3 Port Wire Connector Gen II Lever. 50pc Jar.

IDEAL INDUSTRIES 32A 3 Port Wire Connector Gen II Lever. 50pc Jar. 0.2 mm2 to 4.0 mm2 (Solid/Stranded) and 0.14 mm2 to 4.0 mm2 for Flexible Wire.

GEN II LEVER WIRE CONNECTORS

The IDEAL Lever connectors utilise the latest connection technologies and can accommodate multiple wires of different types of sizes.

It offers a fast, simple and cost-effective alternative to terminal strips allowing electrical professionals to save time and money on site while achieving easier, more consistent terminations for wires up to 4mm2 (12AWG) and 32 Amps.

• For use in all applications up to 32A including lighting, access control, radial and final ring circuits
• Releasable connector – for solid, stranded and flexible wires
• Innovative levers – opens in the opposite direction of insertion points
• Compact design – suits tight spaces
• Easy to use - no need to lift the levers when using on solid wire
• Continuity check port - for testing
• Clear shell - allows for verification of connection
• Secure your cables in seconds – no screwdriwer, no crimping, just strip, push, connect
• Wire clamping range:
  • 0.2 mm² to 4.0 mm² (24 - 12 AWG for solid and rigid stranded wires (7 strands)
  • 0.14 mm² to 4.0 mm² (24 - 12 AWG) for flexible wires
• Ratings:
  • IEC 60998: 32A | 450V | 85° C (ambient)
  • UL 486C: 20A |600V | 105° C (working)
• Strip Length: 11-12 mm | 0.45"
• Compliant with AS/NZS IEC 60998.1 and AS/NZS 60998.2.2 connecting device standards and UL 486C
• CE, UKCA, UL and ENEC approved
