IDEAL INDUSTRIES 32A Grey/Blue WeatherProof Twister Wire Connector

Model: IDL30-1163

IDEAL INDUSTRIES 32A Grey/Blue WeatherProof Twister Wire Connector 15pc Card. Wire Range Capacity: Min - x 2.5mm2; Max - 6 x 4.0mm2.

Connected and protected.

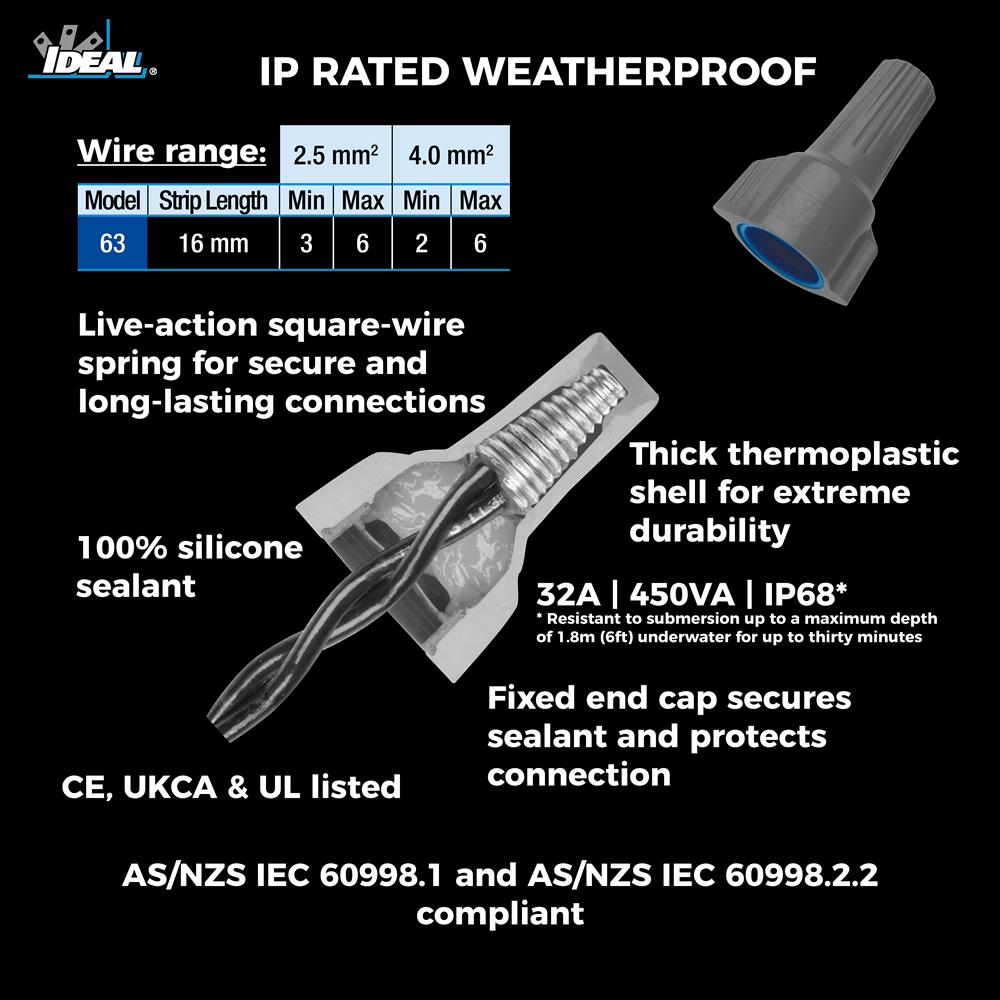

 Designed specifically for above-grade interior or exterior connections exposed to damp wet or corrosive environments WeatherProof Wire Connectors are the perfect twist-on solution for connections that require protection from the elements. The swept-wing design makes the connector easy and comfortable to apply while the pre-filled silicone-based sealant protects against moisture and corrosion eliminating the need for heat-shrink or excessive taping.

WeatherProof Wire Connectors feature tough^ flame-retardant shells that withstand most rugged environmental.

Due to the pre-filled silicone sealant WeatherProof Wire Connectors are designed as a one-use only connection.

Not for use in continual submersion applications.

  • IP68 Rated
  • Complies to AS/NZS IEC 60998.1 and AS/NZS IEC 60998.2.4 Standards
  • Wire Range Capacity: min - 3 x 2.5mm²; max - 6 x 4.0mm²
  • 100% Silicone-based sealant protects against moisture and corrosion
  • Easy to apply pre-filled twist-on wire connectors
  • Eliminates the need for heat-shrink or excessive taping
  • Tough UL 94V-2 flame-retardant shell rated at 105°C
  • For use in damp/wet location above-ground or underground applications
