IDEAL INDUSTRIES 57A Grey Twister Wire Connector 75pc Jar.

Model: IDL30-242JA

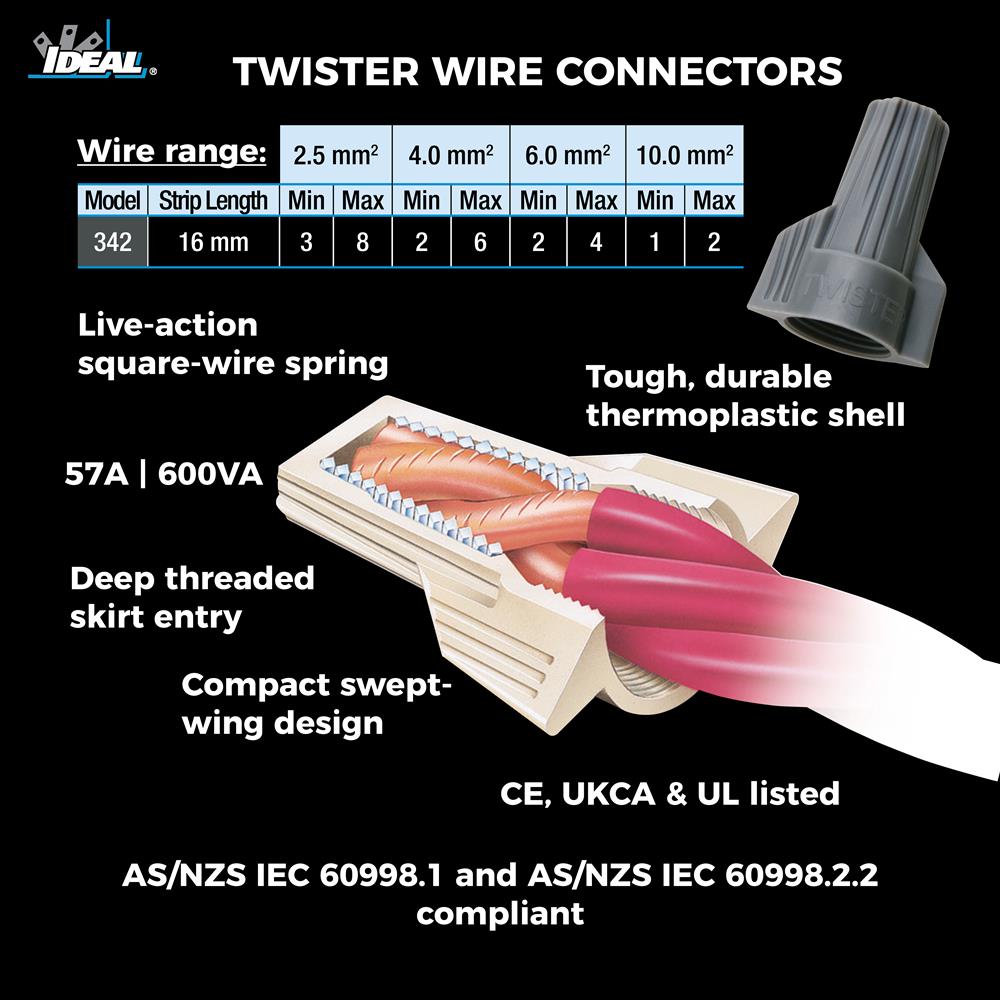

IDEAL INDUSTRIES 57A Grey Twister Wire Connector 75pc Jar. Wire Range Capacity: Min - 3 x 2.5mm2; Max - 2 x 10.0mm2.

Complies to AS/NZS IEC 60998.1 and AS/NZS IEC 60998.2.4 Standards
Wire Range Capacity: min - 3 x 2.5mm²; max - 2x 10.0mm²
Can be used with cables that are stranded solid or a combination of both
Expanding square-wire spring supports a wide range of common wiring configurations
The hexagonal top with ribbed cap allows for quick fingertip start as well as the use of Spin-Twist™ Wire Connector Socket 30-902 nut driver for fast installation
Tough UL 94V-2 flame-retardant shell rated at 105°C
