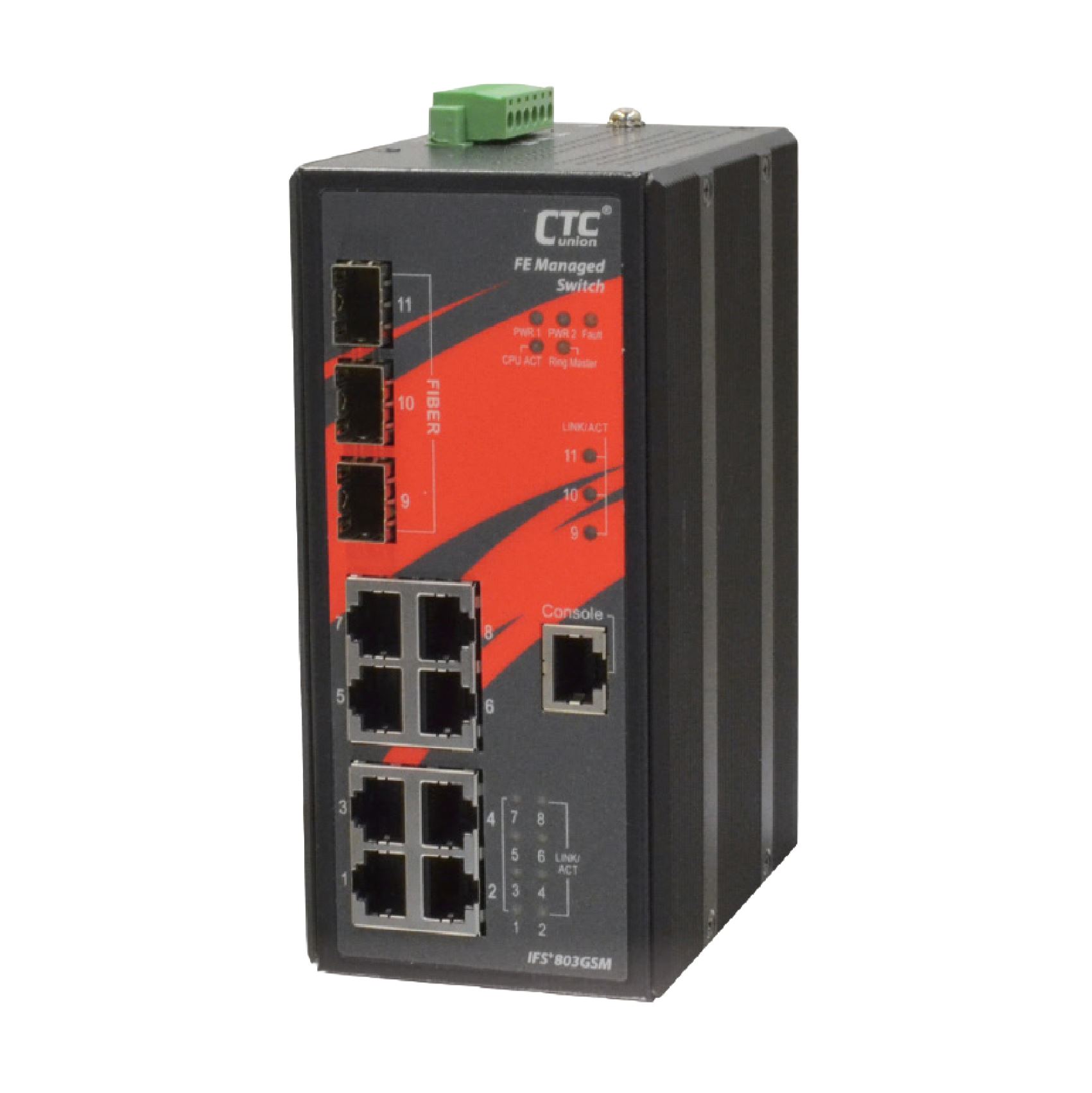

CTC UNION 8 Port Fast Ethernet Managed Switch. -40C~+75C.

CTC UNION 8 Port Fast Ethernet Managed Switch. -40C~+75C. 8x 10/100Base-T(X), plus 3x 100/ 1000Base-X SFP (Total 11x ports). Power consumption V DC/W:12/7.4, 24 /7.8 & 48/8.9. Dinmount kit incl.

fibre optic connections to meet the requirements for extended transmission distance, fanless design, high MTBF, 4KV surge protection, and supports wide operating temperature, redundant 12/24/48VDC power input, suitable for heavy duty applications in harsh environments, such as industrial factory automations, data centres, and intelligent transportation systems, military and utility market applications where environmental conditions exceed the commercial product specifications.

FEATURES:

• Redundant dual DC input power 12/24/48VDC (9.6~60VDC)

• 2.25 kVDC Hi-pot isolation protection for Ethernet ports and power

• 4KV surge protection for UTP and fibre ports

• Provides 5 instances that each can support µ-Ring, µ-Chain or Sub-Ring type for flexible uses.

  (Please see the CTC μ-Ring white paper for more details and more topology applications)

• μ-Ring for Redundant Cabling, recovery time<10ms in 250 devices

• Supports IEEE 1588 PTP V2 for precise time synchronisation to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port

• Supports EMS Management
