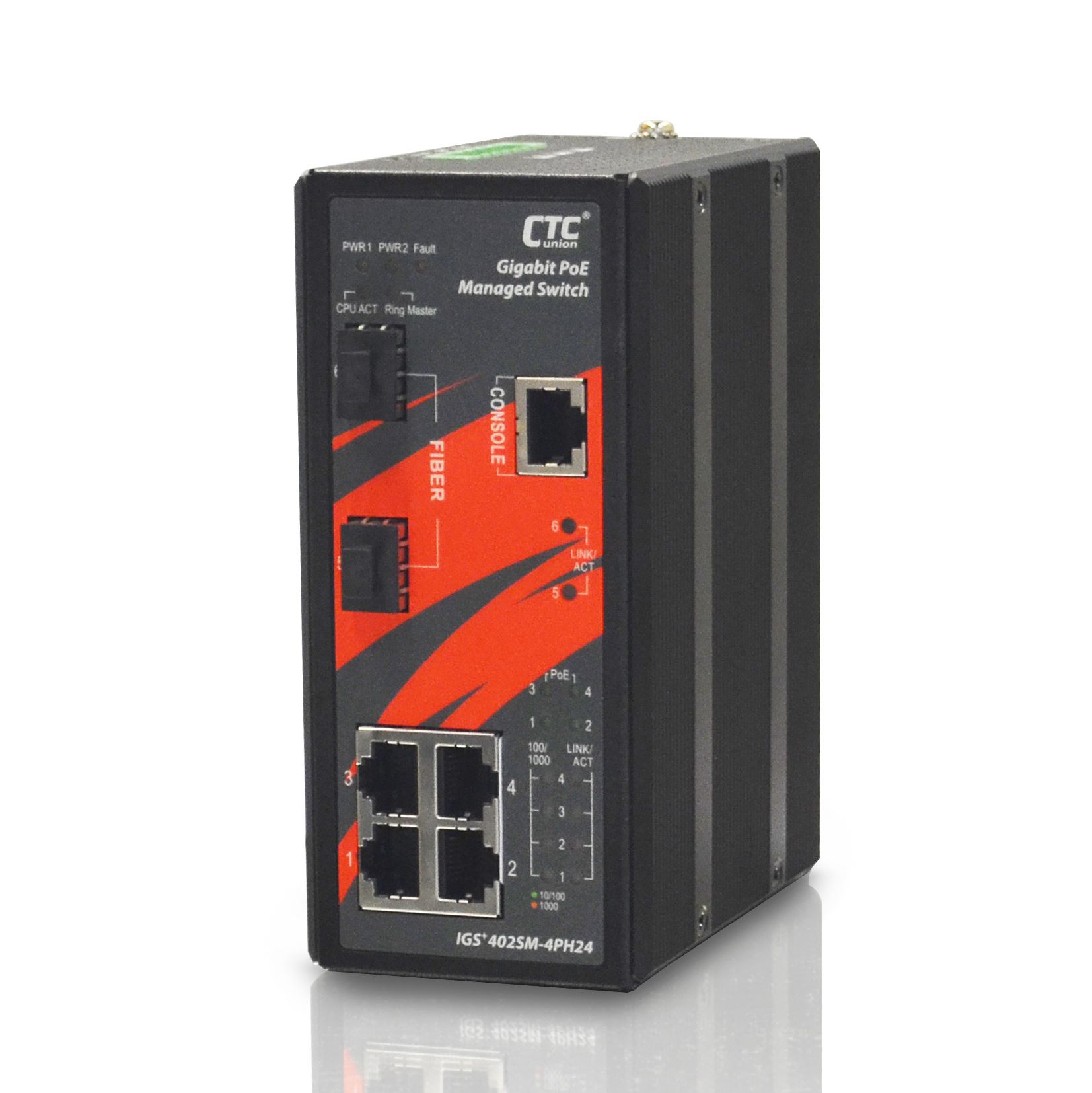

CTC UNION 4 Port Gigabit Managed PoE Switch. -10C ~60C.

Model: IGS-402SM-4PH24

CTC UNION 4 Port Gigabit Managed PoE Switch. -10C ~60C. 4x 10/100/1000Base-T(X), plus 2x100 /1000Base-X SFP.PoE+ power budget 120W. Power consumption V DC/W: 24/135.2, 48/132.5. Din-kit incl.

This series models are managed industrial grade gigabit PoE (Power over Ethernet) switches with 4/8/16 10/100/1000Base-T PoE ports and 2/3/8 Gigabit/Fast SFP ports that provide stable and reliable Ethernet transmission. With dual power input design, the series models can provide redundant mechanisms for critical applications that need always-on connections. These switches can also operate either at a standard operating temperature range (-10°C  to 60°C) or at a wide operating temperature range (-40°C  to 75°C) so as to fulfil the special needs of industrial automation applications.






Features:

  • 4x10/100/1000Base-T RJ-45+ 2x100/1000Base-X SFP with 4xPoE+, total 120W power budget
  • 24/48VDC (20~57V DC) redundant dual input power with built-in very high-efficiency booster (94~97%) to rise up 55 VDC for PoE output (IGS-402SM-4PH24)
  • Regulated PoE output voltage (55VDC) to stabilise PoE device, and guarantee delivery PoE power distance to 100M
  • Provides 4/8 port IEEE802.3af / 802.3at PoE output (30W per Port)
  • Advanced PoE Management, PoE PD Failure Auto Checking and auto reset when PD fail, PoE port on/off weekly scheduling, PoE configuration for power planning
  • UL60950-1, CE, FCC, Rail Traffic EN50121-4, Traffic control NEMA TS2 certified
  • Industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
  • STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling
  • Provides 5 ring instances that each can support μ-Ring, u-Chain or Sub-Ring type for flexible uses. Supports up to 5 rings in one device
  • μ-Ring for Redundant Cabling, recovery time<10ms in 250 devices
  • DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay
  • QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
  • IEEE802.1q VLAN, MAC-based VLAN, IP subnet-based VLAN, Protocol-based VLAN, VLAN translation, GVRP, MVR
  • Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
  • IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
  • Flexibility security: Port-based and MAC-based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
  • Software upgrades via TFTP and HTTP, redundant firmware to avoid upgrade failure
  • Supports IEEE1588 PTP V2 for precise time synchronisation to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
  • RMON, MIB II, Port mirroring, Event Syslog, DNS, NTP IEEE802.1ab LLDP
  • Supports IPv6 Telnet server /ICMP v6
  • CLI, Web-based management, SNMP v1/v2c/v3, Telnet server for management
  • Industrial power supply purchased separately - NDR-120-48
  • 5 Year Warranty



High-Efficiency Boost Technology for PoE
