EDIMAX Industrial Surveillance VLAN 54-Port Gigabit PoE+ Web Smart

EDIMAX Industrial Surveillance VLAN 54-Port Gigabit PoE+ Web Smart Switch. 48 Gigabit Ethernet Ports, and 6 10GbE SFP+ Ports. PoE up to 200m at 10Mps. Supports up to 30W NEW YEAR SALE!

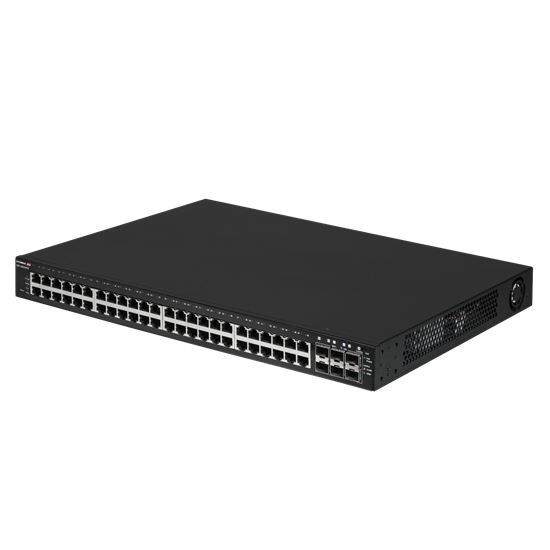

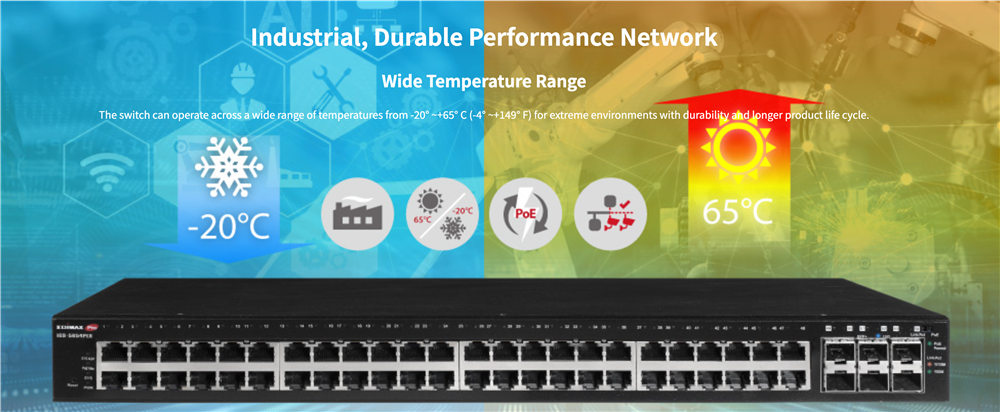

The EDIMAX Pro IGS-5654PLX is an industrial rack-mount web-smart switch equipped with 48 Gigabit PoE+ ports and 6x 10-Gigabit SFP+ ports, offering a fiber-optic uplinking capacity of up to 60Gbps. It ensures fast and dependable connectivity for demanding tasks such as data backup, video conferencing, IP surveillance, and more. Designed to function in harsh environments, this switch boasts resilient electronics and a mechanical design that allows it to operate within a wide temperature range, from -20°C to 65°C (-4°F to 149°F), making it suitable for industrial network applications.

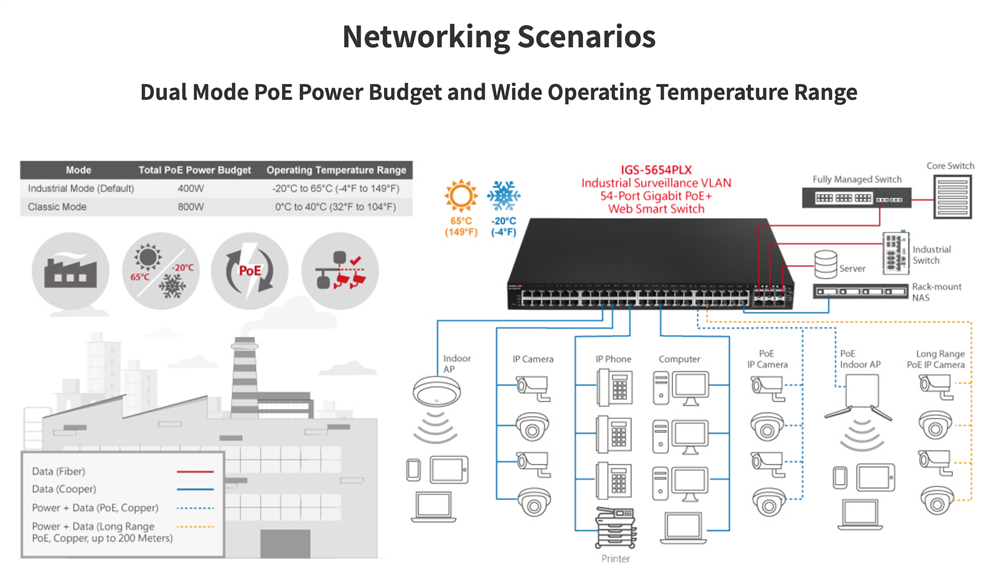

To ensure a stable PoE power supply and a reliable network connection, the switch features dual PoE power budget supply, giving network administrators the flexibility to adjust the PoE power supply up to 800W in classic mode or 400W in industrial mode (default) for PoE devices.

The surveillance switch offers rapid and effortless system settings, device discovery, and user authentication. One-click VLAN configuration and Auto-Enrollment streamline the setup of surveillance networks with ease.

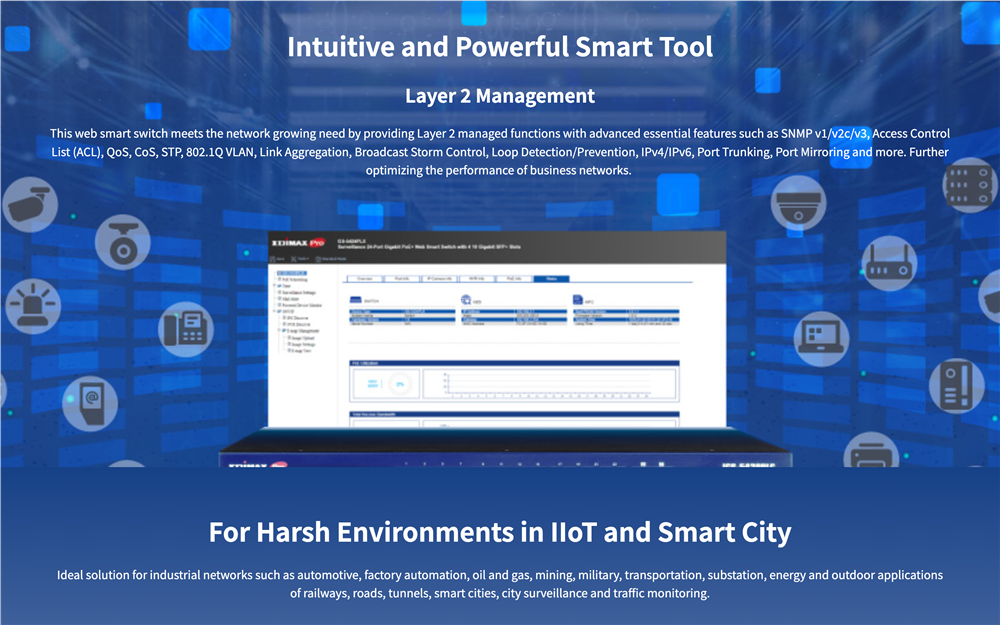

Equipped with intelligent layer 2 management capabilities such as SNMP v1/v2c/v3, Dual Firmware, Access Control List (ACL), DHCP Snooping, QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunking, IGMP v1/v2/v3 Snooping, and Port Mirroring, this switch delivers a dependable, expandable, and secure solution for industrial business networks.

Features:

• 48 Gigabit Ethernet PoE+ ports and 6 10GbE SFP+ ports
• Wide operating temperature range of -20° ~+65° C (-4° ~+149° F) for industrial or extreme environments
• Dual PoE power budget supplies up to 800W in classic mode and 400W in industrial mode (default)
• One-click to create Surveillance VLAN and auto-discover, auto-enrolled devices all at once
• Dedicated Intelligent Thermal Controller to control fan speeds for power saving and noise reduction
• PoE powered devices (PD) alive check to enhance the reliability of the network

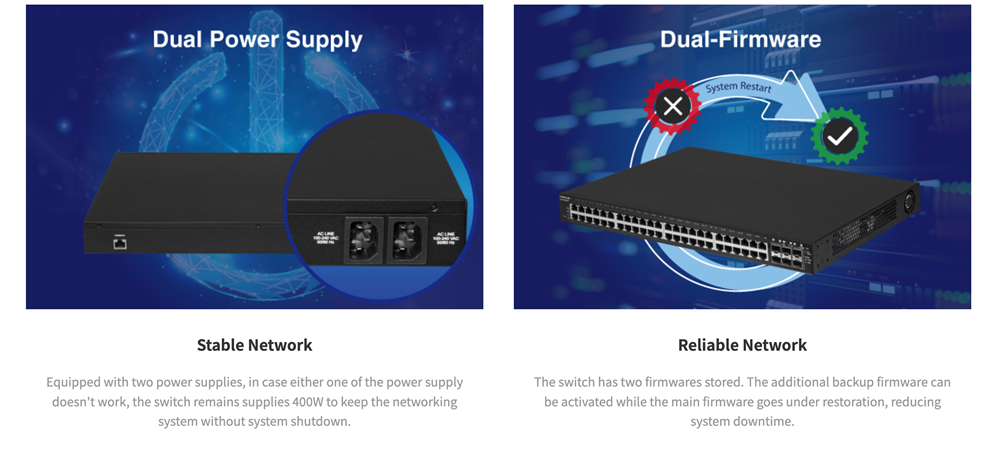

• Dual-power-supply and dual-firmware-image for robust failover mechanisms
• Guaranteed PoE long distance to 200 meters
• Power backfeed protection to avoid damaging the PoE ports
• IP Surveillance VLAN and Voice VLAN to enhance video and voice quality
• DHCP snooping to protect the integrity of the legitimate DHCP server and its operations
• IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 800W or 400W) for powering PoE-enabled devices
• Supports SNMP v1/v2c/v3, Access Control List (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping and etc.

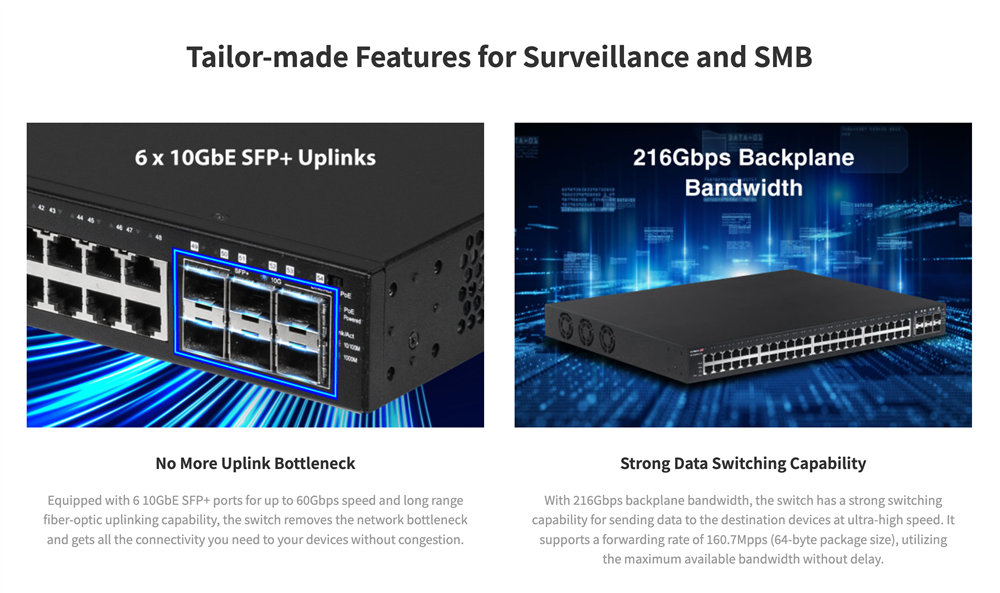

• Supports 216Gbps backplane bandwidth, 160.7Mpps forwarding rate, 32 MAC address table and 12KB jumbo frame
