CTC UNION 4 Port Gigabit Unmanaged Compact Switch. -10C~+60C.

CTC UNION 4 Port Gigabit Unmanaged Compact Switch. -10C~+60C. 4x 10/100/1000Base-T, plus 2x 100/1000Base-X SFP (Total 6 ports). 4KV Surge Protection. Din Rail with Screws Included.

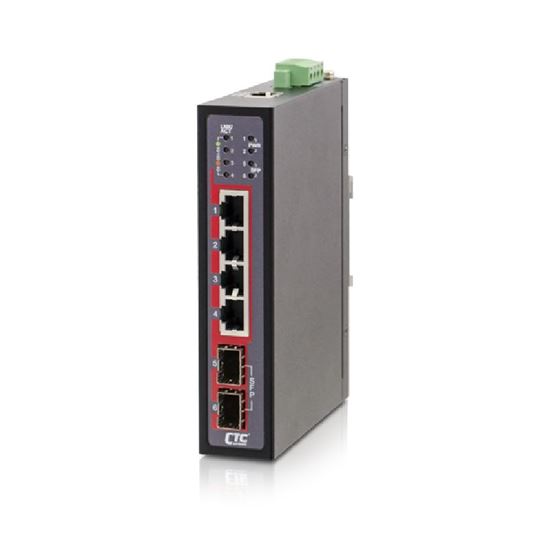

The industrial compact size Gigabit Ethernet switch IGS-402CS, plug and play easy to use, features 4 ports Gigabit UTP and equipped with 2 100/1000Base-X SFP slots for fiber optic connections to meet the requirements for extended transmission distance, fanless design, high MTBF, supports wide operating temperature, and redundant 12/24/48VDC power input, it is suitable for heavy-duty applications in harsh environments such as industrial factory automation and data centers, intelligent transportation systems, military and utility market applications where environmental conditions exceed commercial product specifications.

FEATURES:

• 12/24/48VDC (9.6~60VDC) redundant dual power input
• Supports DIP switch to set broadcast storm protection, SFP Auto/Force Mode, SFP 100M/1000M ; RJ45 Auto/force mode, 10M/100M, Full/half.
• Supports flow control
• Provides broadcast storm protection

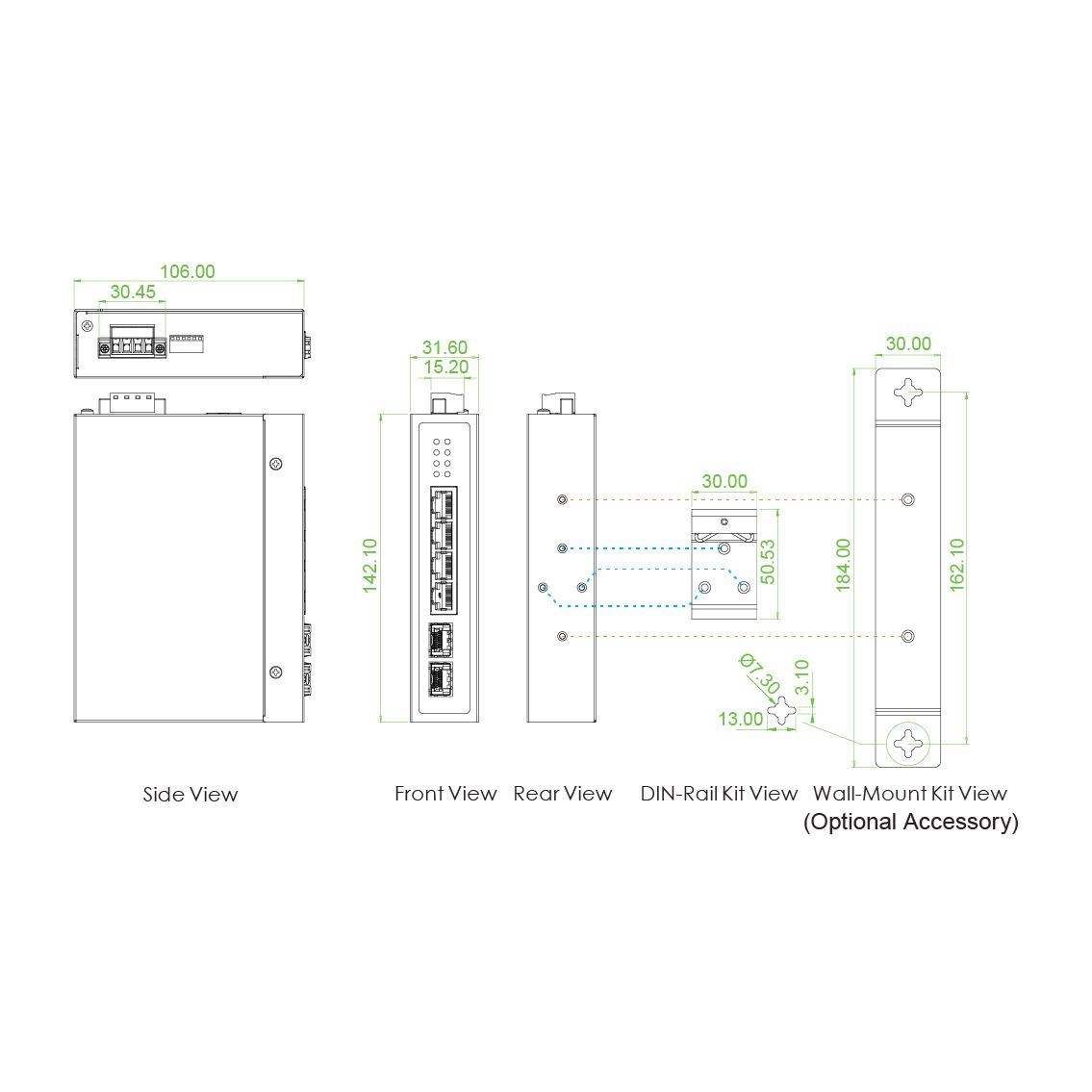

• DIN Rail mounting or wall mounting
