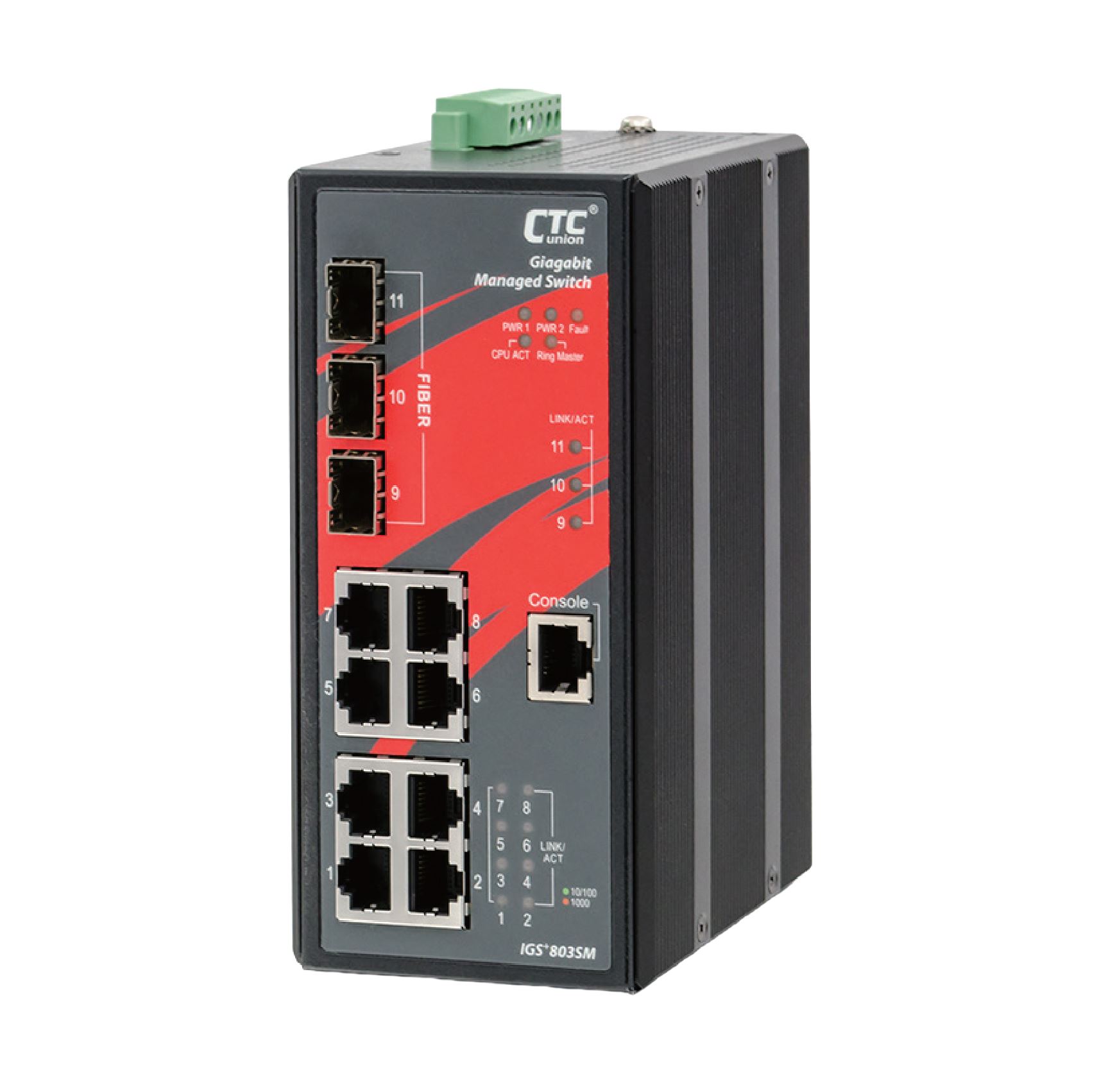

CTC UNION 8 Port Gigabit Managed Switch. -40C~75C.

Model: IGS803SME

CTC UNION 8 Port Gigabit Managed Switch. -40C~75C. 8x 10/100/1000Base-T(X), +3 x100/ 1000Base-X SFP (Total 11x ports). Power consumption V DC/W:12/8.6, 24 /10.8, 48/11.5. Dinmount kit incl.

The industrial managed Ethernet switch IGS+803SM has 8 Gigabit UTP ports, equipped with three 100/1000 SFP slots for fiber optic connections to meet the requirements for extended transmission distance, fanless design, high MTBF, 4KV surge protection and supports wide operating temperature, redundant 12/24/48VDC power input, suitable for heavy-duty applications in harsh environments, such as industrial factory automations, data centers, intelligent transportation systems, military and utility market applications where environmental conditions exceed commercial product specifications.


FEATURES:

  • Redundant dual DC input power 12/24/48/-48VDC (9.6~60VDC)

  • 2.25 kVDC Hi-pot isolation protection for Ethernet ports and power

  • 4KV surge protection for UTP and fibre ports

  • Provides 5 instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses.
    (Please see the CTC μ-Ring white paper for more details and more topology applications)

  • μ-Ring for Redundant Cabling, recovery time<10ms in 250 devices

  • Supports IEEE 1588 PTP V2 for precise time synchronisation to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port

  • Supports EMS Management
