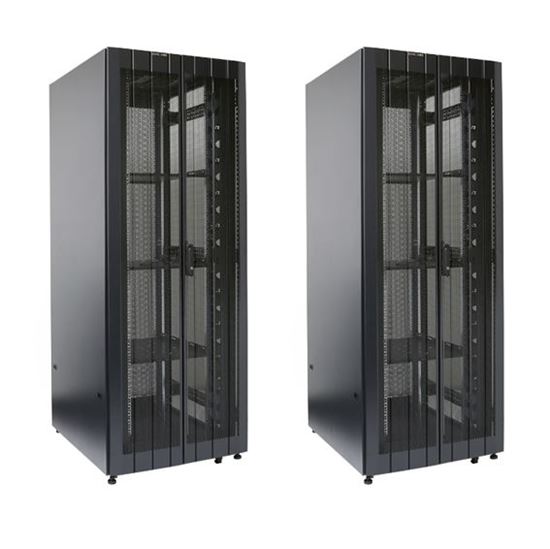

DYNAMIX 47RU Server Cabinet 1000mm Deep (800x1000x2250mm) FLAT PACK

DYNAMIX 47RU Server Cabinet 1000mm Deep (800x1000x2250mm) FLAT PACK 3x fixed shelves, 4x fans, 25x cage nuts, 4x castors, 4x levelling feet Single front & bifold rear mesh NOV PROMO - 20-Pack RackStuds FREE

 Our DYNAMIX range of 19” 800mm wide server cabinets are compatible with all leading switch, server and equipment manufactures. They meet and exceed all required standards and certifications. The cabinets are fully enclosed and lockable (front and rear doors) they are supplied with fixed shelve(s), fans, cage nuts, castors, plus levelling feet. The DYNAMIX network server cabinets come in 800mm, 1000mm and 1200mm depths. Cabinets are supplied complete or in a fast assembly flat pack format (FP codes).

Features:

• Supplied with fixed shelves, fans, cage nuts, castors and levelling feet
• Static loading: 1500kg
• Width: 600mm, 800mm
• Depth: 900mm, 1000mm, 1200mm
• Removable one piece side panels
• Double pipe profi le frame connected by “3T” system
• Front door hinged on right side
• Front and rear doors are lockable
• Front and rear doors can be opened to 130°
• Vertical mounting profile can be adjusted in 25mm increments
• Optional plinths available to bolt cabinet to floor
• Optional side vertical cable tray available
• Optional baying kit available for cabinet interconnection (RABST)
• Mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm
• Supplied complete or in Fast Assembly Flat Pack format (FP codes)
• Gloss black colour and easy clean surface
• Material: SPCC quality cold rolled steel
• Finish: Degreasing, acid pickling, phosphoric cleaning, powder coated
• Complies with IEC-60297, ANSI/EIA
• RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3047.2-92, IP20 rated
• 2 Year Warranty on cabinet. Subject to use within the static loading specifications and operation within normal environmental conditions
• Jackson 6-Way PDU installed
• 1 Year Warranty on fans
