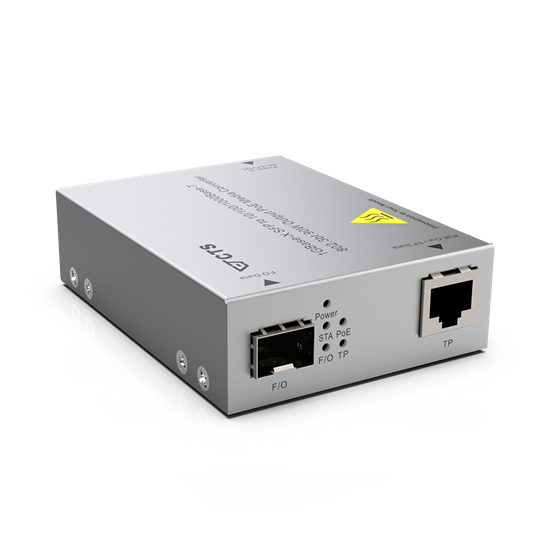

Connection Technology System (CTS) SRC-3002SFP-BT functions as a robust media converter designed to operate in temperatures ranging from -20 to 60°C. It facilitates the conversion from 100/1000Base-X SFP to a 10/100/1000Base-T RJ-45 port, fully compliant with the IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards.
The SRC-3002SFP-BT is compatible with the IEEE 802.3af/at/bt standard, allowing it to deliver a maximum of 90 watts of Power over Ethernet (PoE) output to powered devices (PDs) through a Cat5/5E cable in the RJ-45 port. This capability significantly simplifies wiring configurations.

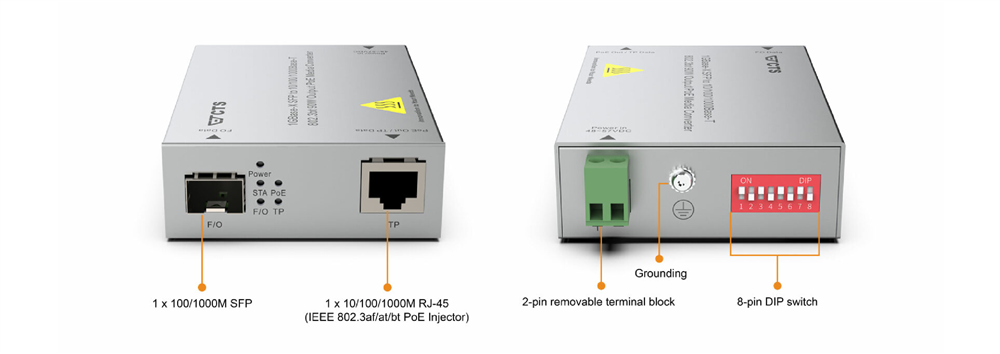

While functioning as an unmanaged media converter, the SRC-3002SFP-BT offers user-friendly configuration and monitoring through a DIP switch and LED indicator on its panel. The DIP switch allows control over various functions, such as Alarm, PSE Auto Power Off, Data-diode, and more.
With these features, SRC-3002SFP-BT not only become a user-friendly product but also a comprehensive solution.
FEATURES:
- Ideal for environments characterised by substantial temperature fluctuations: Unlike other media converters, the SRC-3002SFPBT boasts an extended temperature range, enabling operation from -20 to 60°C. This broad operational range allows it to thrive in environments characterised by fluctuating temperatures.
- Instantly grasp when link issues occur: To address the constraint where unmanaged devices lack the ability to send messages to the central server, CTS has innovated the Link Alarm function. This feature promptly notifies network managers of issues as they arise.
- Reduce operational cost effectively: In instances of unidentified problems, particularly with remote devices situated at significant distances (e.g., 120 kilometres), the PSE Auto Power Off function becomes invaluable. It automatically deactivates PoE output in the event of a fibre link disruption, subsequently rebooting the PD if necessary. This functionality proves cost-effective by eliminating the need to dispatch personnel for manual reboots and issue resolution.
- Send or Receive, Send-&-Receive: Data-diode: Under certain circumstances, users may have security requirements necessitating the restriction of connections between local and remote sides. The Data-Diode function is tailored for this scenario, allowing users to customise it for single or bi-directional transmission, along with the specified direction.
- Higher PoE output with Cat5/5E cable: SRC-3002SFP-BT goes beyond the 30-watt limit of IEEE 802.3at by supporting IEEE 802.3bt with Cat5/5E cable. This capability allows it to deliver a robust 90-watt Power over Ethernet (PoE) output, making it suitable for high-consumption powered devices like speed dome IP cameras.
- Lighter weight and better cooling capability: CTS opted for aluminium as a component of the case in the SRC-3002SFP series, enhancing heat dissipation capabilities and reducing overall weight compared to an all-iron construction.
- Target Applications: FTTX Metro Ethernet Implementations.
