EDIMAX 8 Port 2.5GbE PoE++ Web Smart Switch with 1x 10GbE SFP+

EDIMAX 8 Port 2.5GbE PoE++ Web Smart Switch with 1x 10GbE SFP+ Port. Supports up to 90W per Port (Total Power Budget: 240W). Long Range up to 200m at 10Mbps. Rack Mount Kit Included.

The TGS-3109PLX is a web-smart switch with 8 2.5GbE PoE++ RJ45 and 1 10GbE SFP+ uplink port. Each PoE++ port can supply up to 90W power to PoE-enabled devices with up to a total 240W power budget per switch. It offers powerful and reliable network connectivity providing sufficient bandwidth and speed-demanding applications such as data transferring, backup, video conferencing, IP surveillance, and Wi-Fi 6/6E/7 APs. Tailored for IP cameras and far away network device applications, the EDIMAX-specific long-range mode allows for power and data transmission up to 200 meters at a guaranteed speed of 10Mbps, making it ideal for IP cameras and remote network devices. The PoE also features auto-detection and power backfeed protection to efficiently provide power and avoid damaging PoE ports at the same time. With smart features such as QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention, the TGS-3109PLX provides a cost-effective, reliable, scalable and secure switch solution for SMB networks.

Features:

• 8 x 2.5GbE 90W PoE++ Multi-Gigabit RJ45 ports and 1 10GbE SFP+ port

• IEEE 802.3bt/at/af PoE++ compliant, up to 90W per port (total power budget: 240W) for powering PoE- enabled devices

• Dedicated Intelligent Thermal Controller to control fan speeds for power saving and noise reduction

• Guaranteed PoE long distance to 200 meters

• Auto-detection of powered devices (PD) and power consumption levels

• No need to upgrade the cabling infrastructure, double the network bandwidth by leveraging existing CAT5E cabling infrastructure

• Power back feed protection to avoid damaging the PoE ports

• Supports smart management features including QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention and more

• Supports 60Gbps backplane bandwidth, 44.64Mpps forwarding rate, 4K MAC address table and 12KB jumbo frame

• Rack-mount design, rack-mount kit included

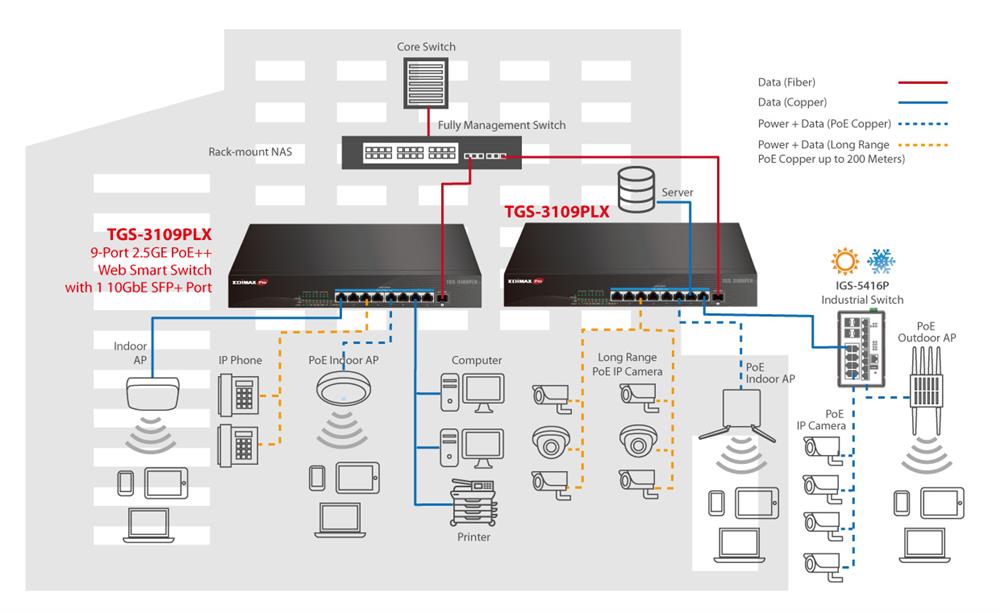

APPLICATION DIAGRAM
