GOLDTOOL Advanced Fiber Optic Tool Kit. High Precision Fast Fusion

Model: TTK-7000

GOLDTOOL Advanced Fiber Optic Tool Kit. High Precision Fast Fusion Splicing.

Features:

  • Various optical fibre tools are included
  • Can be used in various and advanced tasks.
  • High precision Fusion Splicer
  • Fusion splicer tool kits will help to extend the optical fibre cable length
  • Optical power metres and light sources can help to check the optical power device and check the fibre cable status.
  • Fiber cable cleaning kits can help to maintain the connector and interface of optical devices and meters.
  • Hardshell suitcase designed to be lifted and pulled easily.

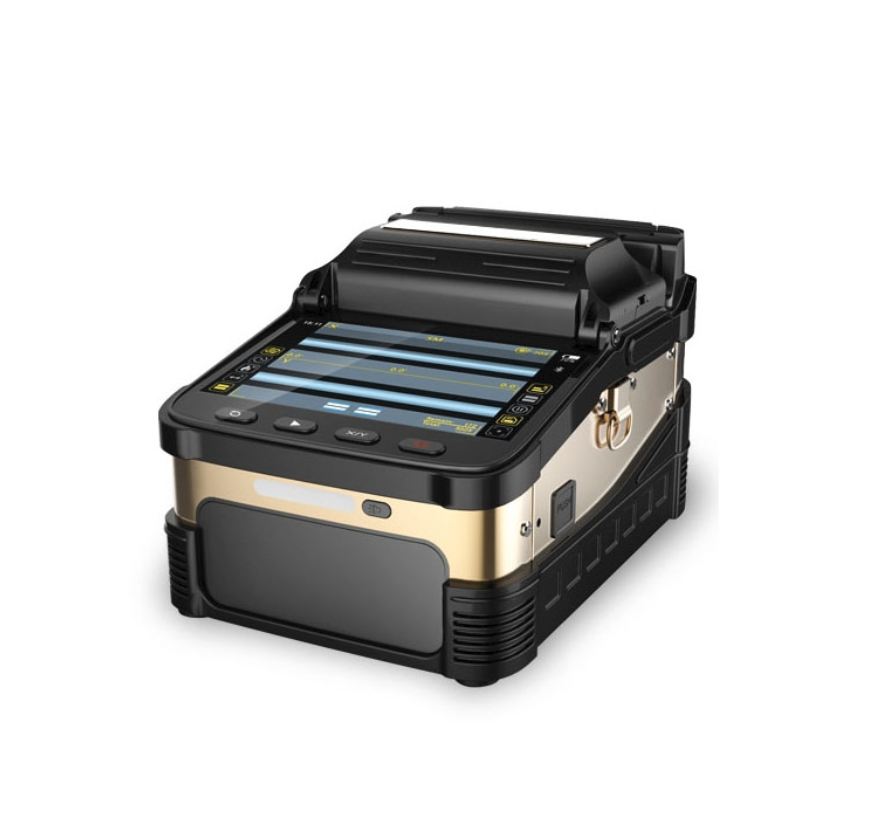

TCT-5000 Fusion Splicer

  • New generation Sixmotoroptical fibre fusion splicer.
  • Industrial quad-core CPU with fast response.
  • 5-inch 800X480 high-resolution screen
  • 6 seconds of ultra-fast core aligned splicing, 15 seconds of heating, working efficiency is 50% higher than ordinary fusion splicer.
  • Large-capacity lithium battery. when fully charged, heating about 240 cores.
  • the external lighting design is convenient for night construction or repair.

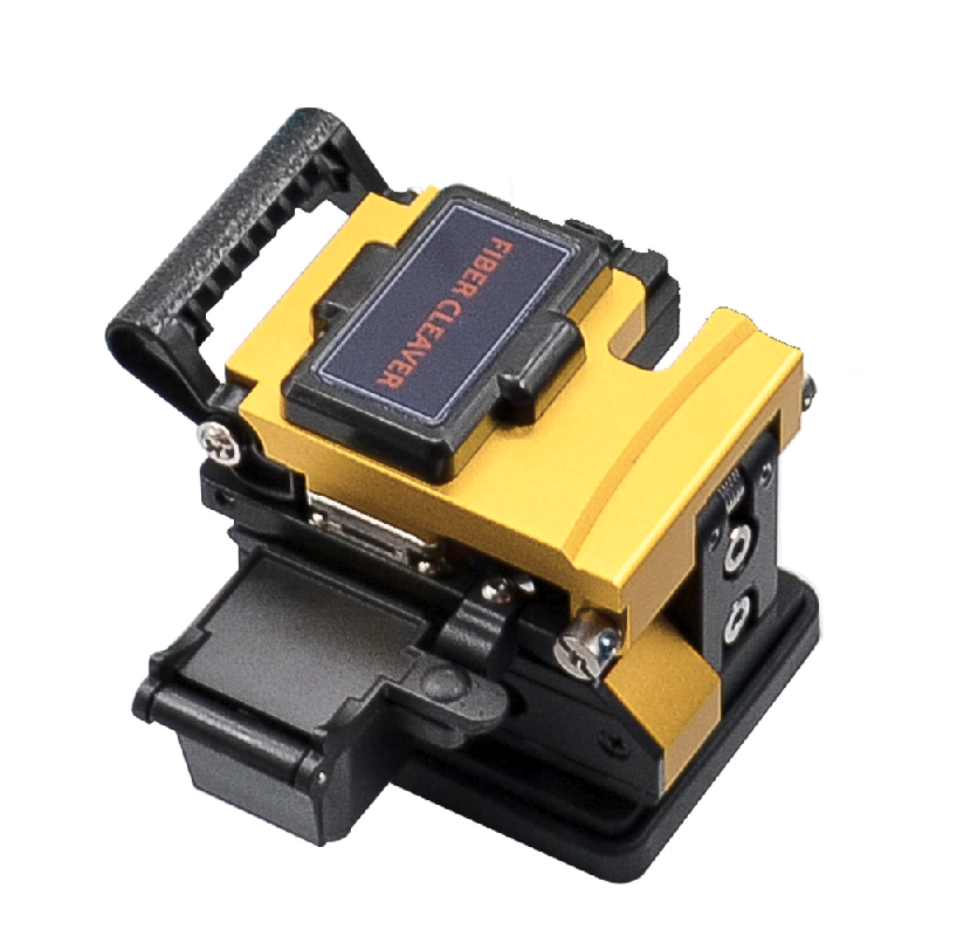

TTK-1401 Fiber Cleaver

  • Cutting angle <0.5 degrees
  • Blade life 48,000 times
  • Three-in-one fixture 0.25~3.0mm
  • Waste fibre collection box
  • Automatic tool return function

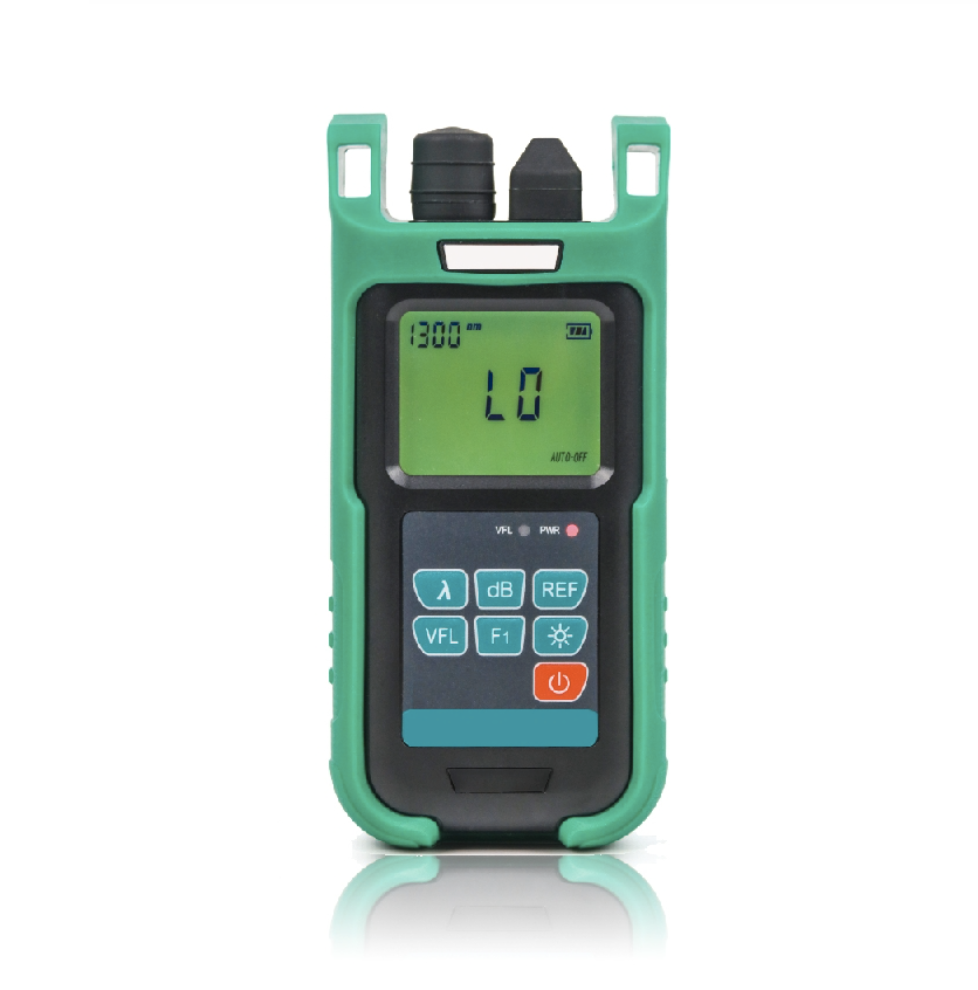

TCT-7200 Optical Power Meter with VFL

  • Integrated optical power meter and visible light source locator
  • Designed to meet any FTTX application.
  • 6 test wavelengths, optional 850, 1300, 1310, 1490, 1550, 1625, single multimode universal.
  • Different adapters can be replaced for the interface, optional automatic shutdown and automatic backlight function, fast response
  • High quality imported laser head with distance up to 30 kilometers
  • Silicone shell protection

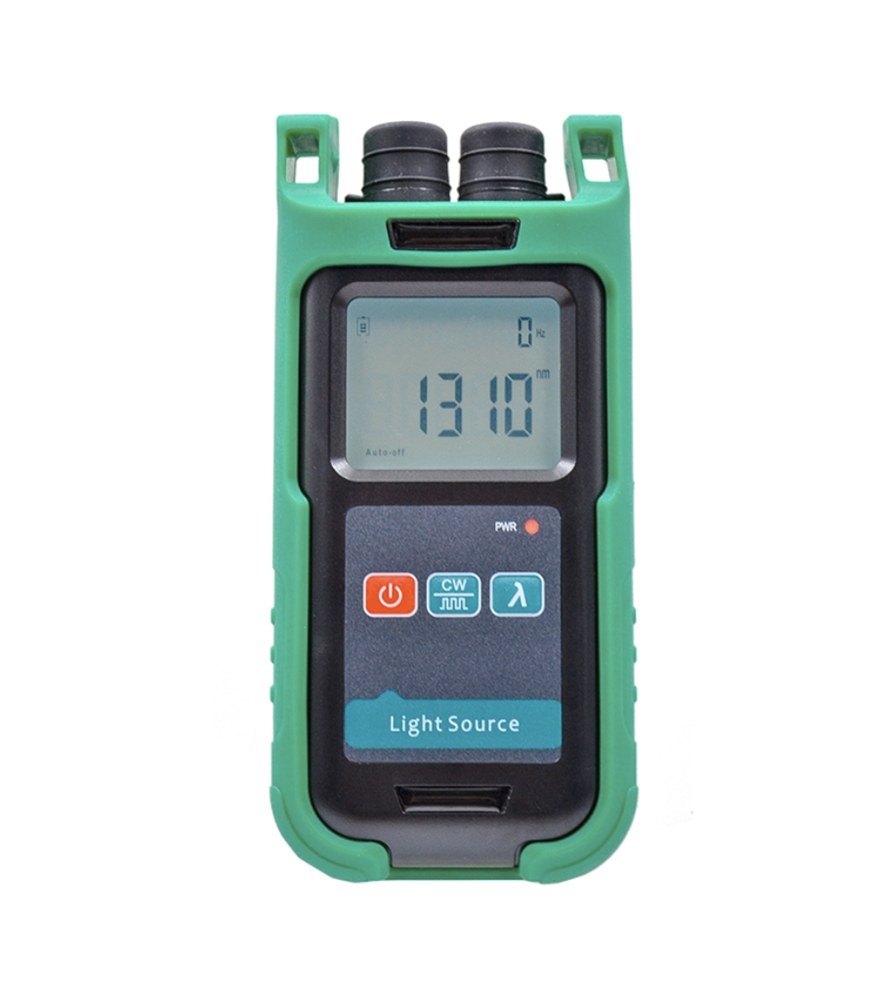

TCT-5670 Optical Light Source

  • Wavelength(nm) : 850/1300/1310/1550 (nm)
  • Output Power : -5dB
  • Adapter : FC+SC+2.5mm universal (1.25mm LC option)
  • Output stability : ±0.05dB/15mins ; ±0.1dB/8hours
  • Module Frequency : CW, 270Hz, 1KHz, 2KHz
