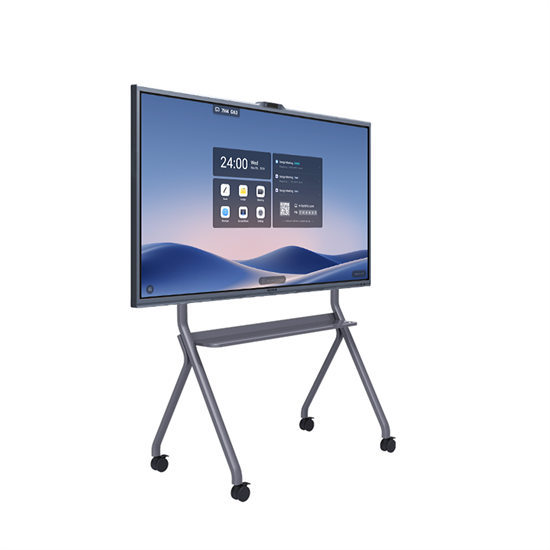

MAXHUB 86" V7 Series XBoard MTR 4K Interactive Touch Screen.

MAXHUB 86" V7 Series XBoard MTR 4K Interactive Touch Screen. 50MP x 3 Trident Camera System, 16 Mic Array, 15m Pick up Range, IR Recognition, 50 Point Touch, 2x 10W Speaker + 20W Sub. Built-in OPS

MAXHUB XBoard V7 Series
For Microsoft Teams Rooms

The MAXHUB XBoard is a Windows-based, all-in-one collaboration solution designed for meeting rooms and huddle spaces. It consists of a high-resolution 4K LCD touch display, a triple-camera system, crystal-clear speakers and a 16-microphone array. As a certified Microsoft Teams Room device, the MAXHUB XBoard offers seamless colloboration and immersive video conferencing experiences.

Features:

Display:

• 86-inch 4K UHD (3840 × 2160) resolution for sharp and vibrant visuals.
• IPS panel with Direct LED backlight offering 350 nits brightness and a 1200:1 contrast ratio.
• 90% NTSC color gamut ensures accurate color reproduction, suitable for high-end design and media applications.
• Non-glare screen technology with 25% haze reduces reflections, improving visibility in bright environments.

Touch System:

• Intelligent touchscreen technology supporting 50 touch points, enabling multiple users to interact simultaneously.
• Features like Windows Ink, direct annotation, palm rejection, sharp erase, multi-input recognition, and handwriting recognition enhance the interactive experience.

Camera:

• AI-powered trident lens system with three 50 MP cameras (one panoramic and two telephoto) providing comprehensive room coverage.
• 2x optical zoom and 5x digital zoom facilitate detailed views.
• Auto-framing adjusts the view based on participant number and location, while speaker-tracking technology ensures the active speaker remains in focus.

Audio:

• Built-in 2.1 sound system with two 10W speakers and a 20W subwoofer delivers clear audio.
• 16-microphone array with a 180° wide-angle and 15-meter pickup range ensures all participants are heard.
• AI noise cancellation, intelligent audio fence, and adaptive EQ modes filter out background noise, enhancing audio clarity.

Connectivity:

• Multiple input and output ports, including HDMI IN × 2, USB 2.0 × 1, USB 3.0 × 2, USB Type-C × 1, TOUCH 2.0 × 1, AUDIO IN × 1, AUDIO OUT × 1, RS232 × 1, and RJ45 IN × 1.
• Supports Wi-Fi 6 (802.11ax) and Bluetooth 5.2 for wireless connectivity.

Collaboration Tools:

• One-click access to the whiteboard feature with various preinstalled graphic templates facilitates efficient brainstorming.
• Bring-Your-Own-Meeting (BYOM) capability allows hosting meetings directly from personal devices, utilizing the display's audiovisual equipment.
• Flexible content sharing options, including wired and wireless methods, with ultrasonic technology enabling instant screen sharing without Wi-Fi.

Operating System:

• Powered by MAXHUB OS 7.0, based on Windows, ensuring compatibility with a wide range of applications and platforms.
